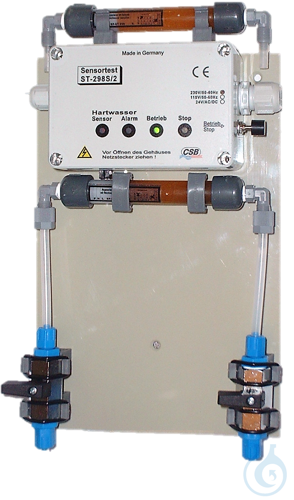

Hardness control device SG 298 S, 1''

Hardness control device SG 298 S, 1''
Softener equipment


Automatic hardness control device for monitoring of soft water hardness.
It is designed for installation in the soft water and consists of a sensor based on resin expansion and shrinkage. It is equipped with a potential-free contact to control
different users (e.g. RO systems) or for acoustic or optical alarm signal applications.
Display of ''operation'' and ''raw water'', incl. measuring cell, connection hoses and replacement sensor.
The unit works without the use of chemicals or water.

Technical data:
Flow rate: max. 6500 l/h
at pressure difference 0.2 bar
electrical connection: 230 V, 50/60 Hz
current consupmtion: 1,2 VA
Housing PVC IP 54
change-over switch: potential-free
electrical loading max. 250 V/5 A
pressure drop: max. 0.2 bar
