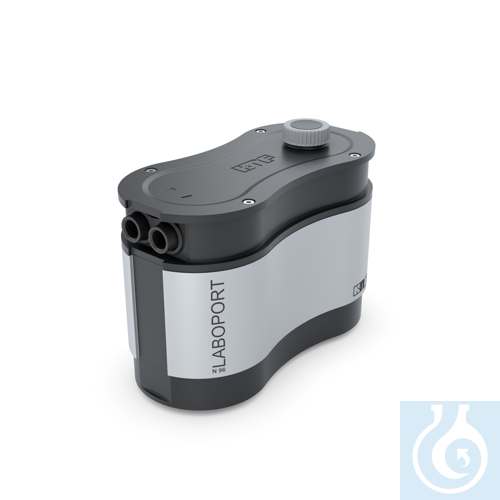

KNF Vacuum pump, LABOPORT®, Type N96

KNF Vacuum pump, LABOPORT®,

Type N96

(follow-up pump for N86KN.18, N86KT.18, N811KN.18, N811KT.18)

The smallest chemical resistant pump in our new LABOPORT® series, the N 96 combines a high flow rate with a compact design, saving valuable space in the laboratory. Thanks to the manual rotational speed control, the N 96 is quiet, very energy efficient, and can be optimally adjusted in accordance with the application.
The next generation of Laboport pumps are equipped with an easy-to-clean surface.
Potential applications include filtration, SPE, and liquid aspiration using a vacuum.
N 96 mini diaphragm vacuum pump:
- Flow rate of 0.3 – 0.42 m3/h, ultimate vacuum of < 130 mbar abs
- Very small footprint
- Integrated rotational speed control
- PTFE-coated diaphragm for use with aggressive/corrosive gases and vapors
- scope of delivery: 1x nozzle 6mm, 1x silencer/filter. 24V-power supply

accessories
fine adjustment valve with vacuum gauge (vacuum): 132254/000000
fine adjustment valve with pressure gauge (pressure): 058970
nozzle ID 6 mm 055956
nozzle ID 8mm 004975
silencer/filter 000346
column fixture 323484
