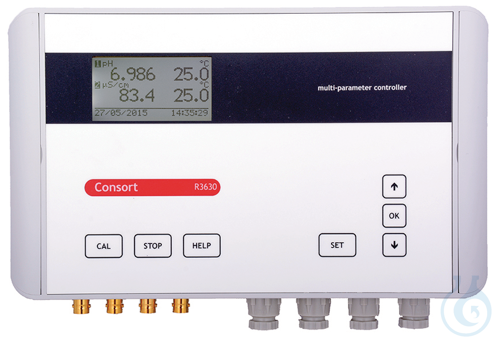

R3630 - 2 CHANNEL PH/EC/CL/ORP CONTROLLER Multi-parameter controller - Gold

R3630 - 2 CHANNEL PH/EC/CL/ORP CONTROLLER

Multi-parameter controller

- Gold Plated BNC
- 2 Multiparamter Channels
- 3 Independable Control Systems
- Control types: proportional, on/off
- Safety Features: Stop control without stopping measurements, automatic resume, washing program, programmable alarm
- Pre-programmed standards
pH: 1.68, 2.00, 4.00, 4.01, 6.87, 6.99, 9.18, 9.21, 10.01, 12.00, 12.45 (at 25°C)
Conductivity: 1413 μS/cm, 12.88 mS/cm, 111.8 mS/cm (at 25°C)
- No interference between electrodes
- Stability algorithm with intuitive indicator
- Selectable resolution
- Capacitive compensation
- Galvanic isolated RS485 interface
- Galvanic isolated 4-20mA outputs
- High Accuracy
- Free software
- Open Communication Protocol

Measurement Channels: 2
Temperature Channels: 2
Controls: 3
Solid State Relays: 4
pH: -2.000...+16.000 pH
mV: ±2000.0 mV
Conductivity: 0...2000 mS/cm
Dissolved oxygen: 0...60.00 mg/l - 0...600%
Free chlorine: 0...10 mg/l
Air pressure: 600...1300 hPa
Temperature: -5.0...+105.0°C
Digital output: RS485
Analogue output: 4..20mA

Warranty 36 months
Made in Belgium
