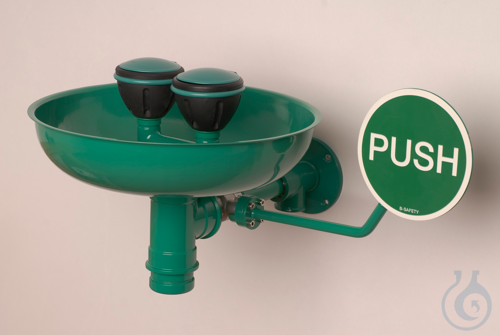

Safety eye shower with catch basin for wall mounting surface-mounted

ClassicLine safety eye shower with catch basin for wall mounting Surface-mounted.
- Wall flange with 4 fixing holes made of stainless steel, chemical-resistant green powder-coated, water connection 3/4-inch-IG
- Plug-in system X6 made of 3/4-inch stainless steel for easy installation and alignment of the shower, chemical-resistant green powder-coated, water connection 3/4-inch female thread
- 1/2-inch stainless steel connection pipe with push-in connector X8, chemical-resistant green powder-coated, length 60 mm
- Integrated automatic flow regulator 14 litres / minute for a standard-compliant spray pattern at a specified working range of 2.5 to 5 bar flow pressure
- 1/2-inch stainless steel ball valve, with PUSH lever operation, DIN-DVGW tested and approved
- Control panel made of steel, chemical-resistant green powder-coated, length 240 mm, with large signal ''PUSH'', photoluminescent according to DIN 67510
- Stainless steel drip tray, diameter 275 mm, chemical-resistant, green powder-coated, drain connection 1 1/4-inch male thread
- Wide-jet high-performance spray heads, with plastic spray plate, low-scaling, incl. rubber protection and tight-fitting dust cover with hinged mechanism, mounted over distribution fork
- Sign for eye shower according to DIN EN ISO 7010 and ASR A1.3, self-adhesive PVC foil, dimensions 100 x 100 mm, recognition range 10 metres
- Height 220 mm, projection 385 mm, total width incl. lever 425 mm
- Mounting height 860 mm (± 200 mm)
- according to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717
- according to ANSI Z358.1-2014 and DIN EN 15154-2:2006
- DIN-DVGW tested and approved
