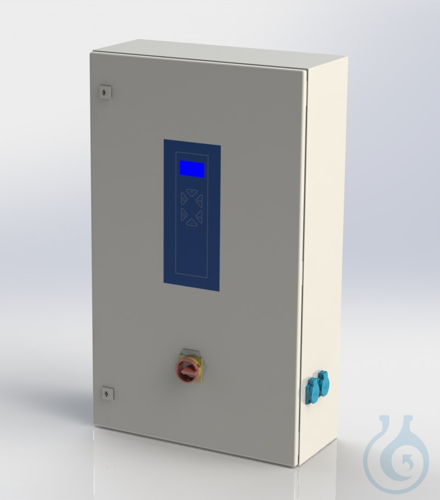

This redundancy circuit manages the operation of two Protegra systems connected in parallel with downstream tank and level measurement, pressure booster pumps (distribution pumps) and Q3 discharge. The redundancy system also comes with a start/ stop warning system, conductivity measurement and pressure sensors controlling the booster pumps.

Permeate production is alternated between the two RO systems. If the tank level drops below the activation value of 50%,the second system is activated.
This value is adjustable.

The distribution is carried out by both pumps in alternation. When the pressure reaches a minimum or maximum, the pumps are switched off. These pressure values are preset to 1 bar (minimum)and 6 bar (maximum) and are adjustable.

Technical Specifications:

Mains voltage: 3x400V
Voltage Pumps: 3x400V
Pump type: regulated/ unregulated
Analog outputs possible: x
Start signal via level sensor: yes
Start signal via ext. signal: no
Analog outputs available: 4
Collective fault output x18: available
EA Boards: 2
Hardness error message X17: available
Motor protection circuit: 6,3-10A
System A RO Status X16: to extern: yes
System B RO Status X17: to extern: yes
System A Malfunction: to extern: yes
System B Malfunction: to extern: yes
Pump A Malfunction: to extern: yes
Pump B Malfunction: to extern: yes
Flow rate measurement Loop: available
Temp.measurement Loop: available
Conductivity measure. Loop: available
Dual RO: available
Discard tank/ Loop: available
Measurement Feed water: available
