Description

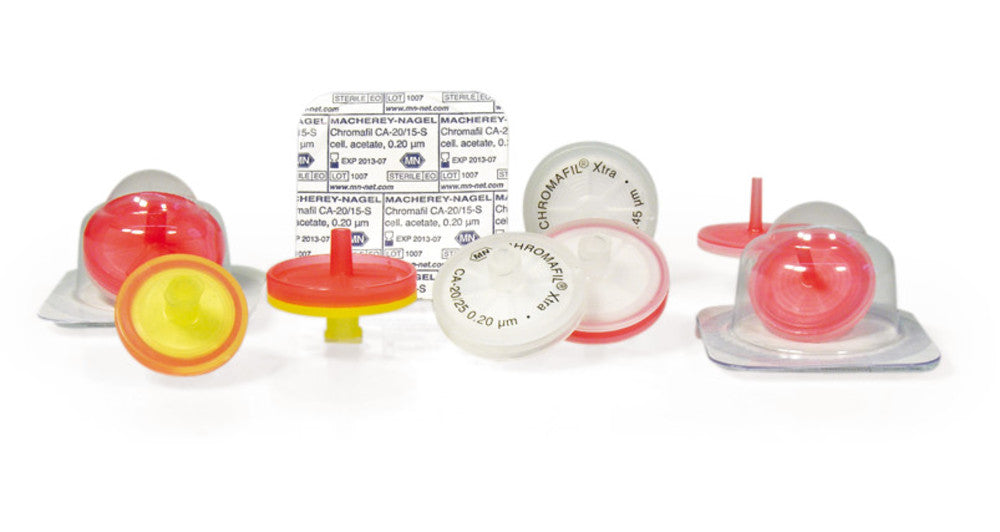

CHROMAFIL® RC syringe adaptor filters, pore size 0.20 µm, Ø 15 mm, 100 p.
Autoclavable: yes. Non-sterile
For clarification or sterile filtration of liquids or gases, as well as for sample preparation for use in HPLC, GC, ICP, AAS, TOC, DOC, IR, NMR, photometry, spectroscopy, etc.Compacted PP housing with very low extractable substances content and good chemical resistance.Autoclavable at 121 °C and 1.1 bar for 30 min.
Regenerated cellulose hydrophilic membrane with very low adsorption. For filtration of aqueous and organic-aqueous solutions. Protein binding capacity: 84 μg per 25 mm filter.
Not a medical device / Not an IVD product
Technical Information
| Type | RC-20/15 MS |
| Pore size | 0,2 µm |
| Sterility | Non-sterile |
| Ø membrane | 15 mm |
| Ø housing | 25 mm |
| Membrane material | RC |
| Housing material | PP |
| Sample volume | 1–5 ml |
| Dead volume | ~35 µl |
| Filtration area | 1.6 cm² |
| Max. application temperature | 55 °C |
| Max. operating pressure | 6 bar |
| Inlet connection | Luer lock connector |
| Outlet connection | Mini-Spike |
