Description

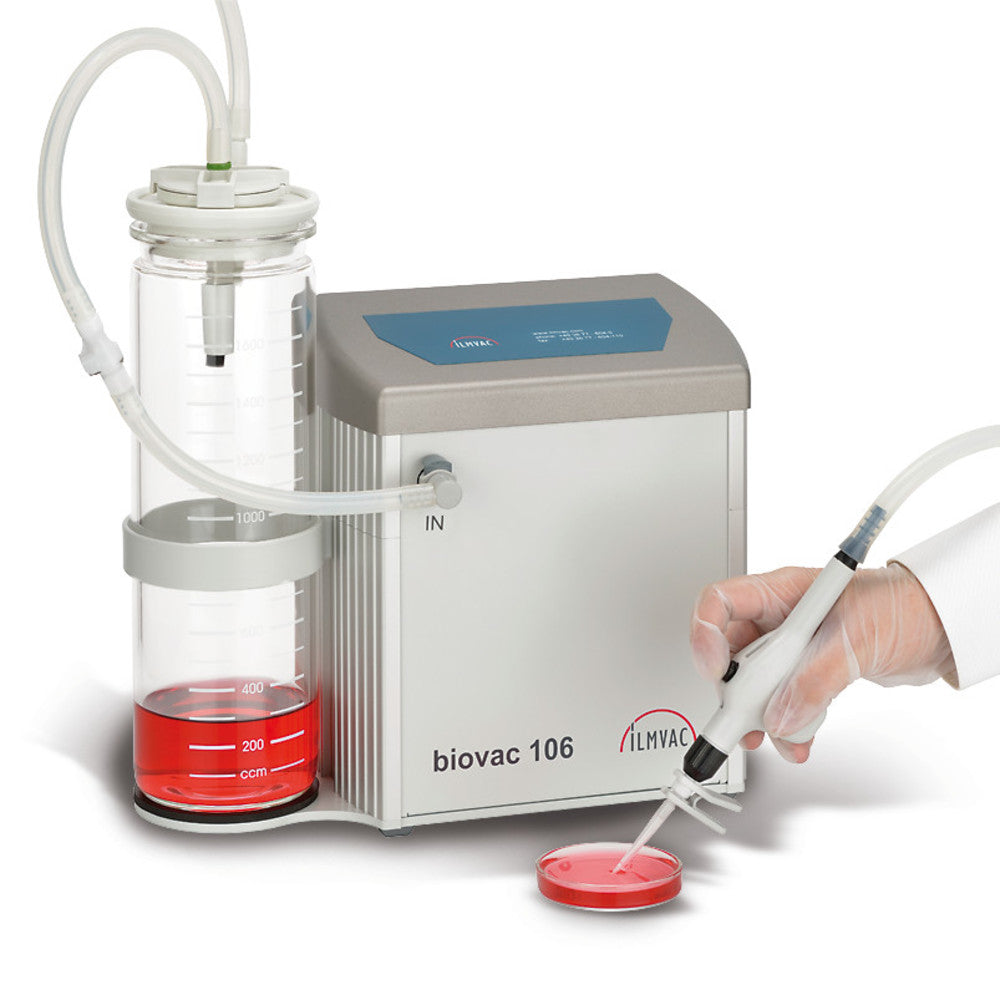

Safety suction system biovac 106, incl. extension, 12 l/min
For safe and precise extraction of liquid, non-explosive residues from slides, Petri dishes and other containers.
- Incl. chemical-resistant diaphragm pump with long service life
- Connections to the diaphragm pump and to the handpiece via quick couplings with double-sided shut-off valve
- The pipette holder enables a variety of pipette tips or glass tips to be used. Delivery incl. eight-channel suction rake
- Integrated collection container (autoclavable) with integrated float valve, closes automatically once the max. fill level has been reached
- Integrated filter mount for diaphragm filter between the collection container and the diaphragm pump. Diaphragm filters up to max. pore size of 0.22 µm, Ø 55 mm can be used. Factory-integrated: 0.22 µm PTFE filter, Ø 55 mm
- If necessary, the pump can be switched on via a footswitch which can be purchased as an option
Note: when the quick couplings are fitted, unscrew the cap before autoclaving and place it on the bottle.
Delivery incl. mains adapter.
Technical Information
| Type | biovac 106 |
| Bottle volume | 2000 ml |
| Suction capacity (l/min) | 12.0 |
| End vacuum (abs.) | 100 mbar |
| Overpressure | 1 bar |
| Ambient temperature | +10 - +40 °C |
| W x D x H | 357 x 145 x 277 mm |
| Weight | 8 kg |
| Mains connection | 115-230 V, 50/60 Hz |
