Description

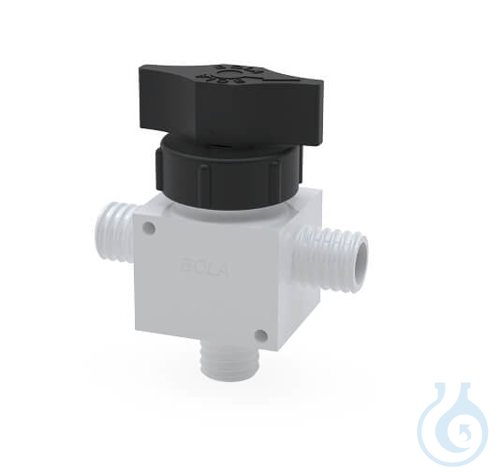

BOLA GL Ball Valves Two-way valve with straight bore and two connections with GL thread or three-way valve with L-shaped bore and three connections with GL thread. Ball-shaped stopcock plug for excellent tightness, free-moving stop valve. Suitable for pressure up to max. 12 bar, or for vacuum. Universal chemical resistance, the flowing product is only exposed to PTFE. Abmessungen: Type 3-Wege/3-way Bore shape of stopcock L Bore dia. mm 8 Connecting thread GL 25 External dimensions L / D / H mm 90 x 50 x 98
