Description

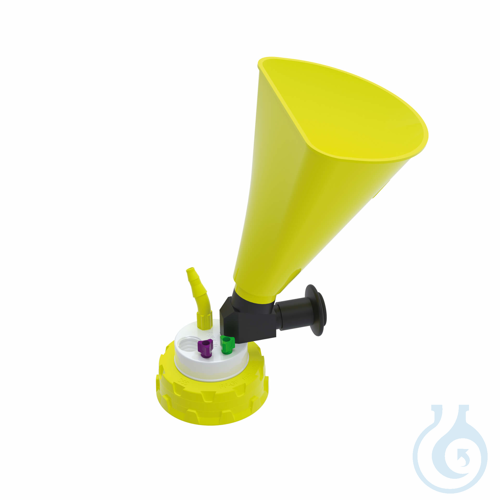

b.safe Waste Cap S55 with Funnel Screw cap made of PP for S55 thread, free movable insert made of PTFE. With PFA Fittings for capillaries with O. D. 1,6 / 2,2 / 3,2 mm (thread UNF 1/4“), Blind Fittings made of PFA to close unused connections, 1 hose connector for tube I. D. 5,5-8 mm (thread NPT 1/8“) and 1 connector to screw in a b.safe Exhaust Filter (thread GL14, not included in the scope of delivery). Additionally with fixed Filling Funnel made of PP with integrated stopcock. Choose the stopcock between the versions “Stopcock with grip”, where the passage opens through turning the grip and the grip position shows if the stopcock is closed, or “Automatic stopcock” where the passage opens through pushing the grip and closes automatically if the grip is loosened. Version and scope of delivery as per below chart. Abmessungen: Number of capillary connectors 2 Number of Fittings green 2 x Ø 1,6 mm Number of Fittings purple 2 x Ø 2,2 mm Number of Fittings yellow 2 x Ø 3,2 mm Number of Blind Fittings milky white 1 Hose Connectors 1 x 5,5-8,0 mm Stopcock Grip - Stopcock Automatic X
