Description

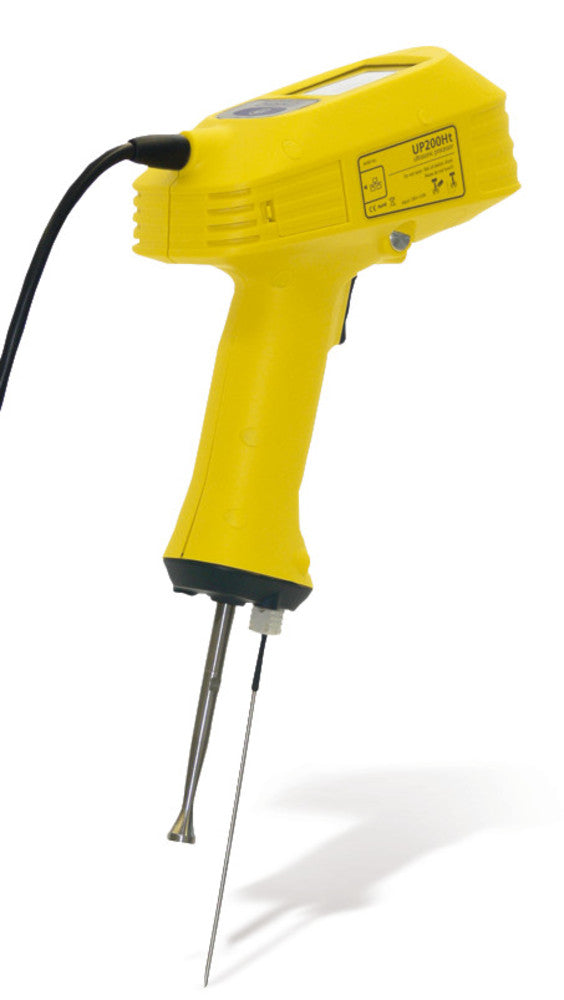

Digital ultrasonic disintegrator UP200Ht, 200 W, 26 kHz, Delivery incl. carry case, boom arm (L 200 x Ø 12 mm), cross clamp, 3 m network cable, 1 GB SD/USB combo card and Pt100 temperature sensor. Please order sonotrodes and stand separately.
Applications: sample preparation, homogenisation, dispersion, disagglomeration (e.g. nanoparticles), emulsification, analysis and cell disruption, extraction, degassing and sonochemistry.
- Use as hand-held device or mounted on a stand
- Colour touch display and digital setting and monitoring functions
- Amplitude or power output control
- Countdown function: 0.1 s to 99 d
- Automatic data storage on integrated SD card reader in 100 ms cycles; records amplitude, power output, time and temperature
- Temperature range monitoring: acoustic irradiation is interrupted if the medium temperature is above or below the setpoint
- Temperature display (with connected probe): -50 to +200 °C
- Operation and monitoring via LAN cable, i.e. a browser can be used for display and remote control (no need to install software on PC)
- With LED sample illuminator
- Protection against dry running
Not a medical device / Not an IVD product
Delivery incl. carry case, boom arm (L 200 x Ø 12 mm), cross clamp, 3 m network cable, 1 GB SD/USB combo card and temperature sensor Pt 100. Please order sonotrodes and stand separately.
Technical Information
| Type | Ultrasonic disintegrator UP200Ht |
| Performance | 200 W |
| Working frequency | 26 kHz |
| Power output control | Amplitude 20 to 100 %, continuously adjustable |
| Pulse range | 10,0–100,0 %/s |
| Temperature range | -50 to +200 °C |
| Length | 190 mm |
| Width | 90 mm |
| Height | 300 mm |
| Weight | 1.4 kg |
| Mains connection | 100-240 V, 50/60 Hz |
