Description

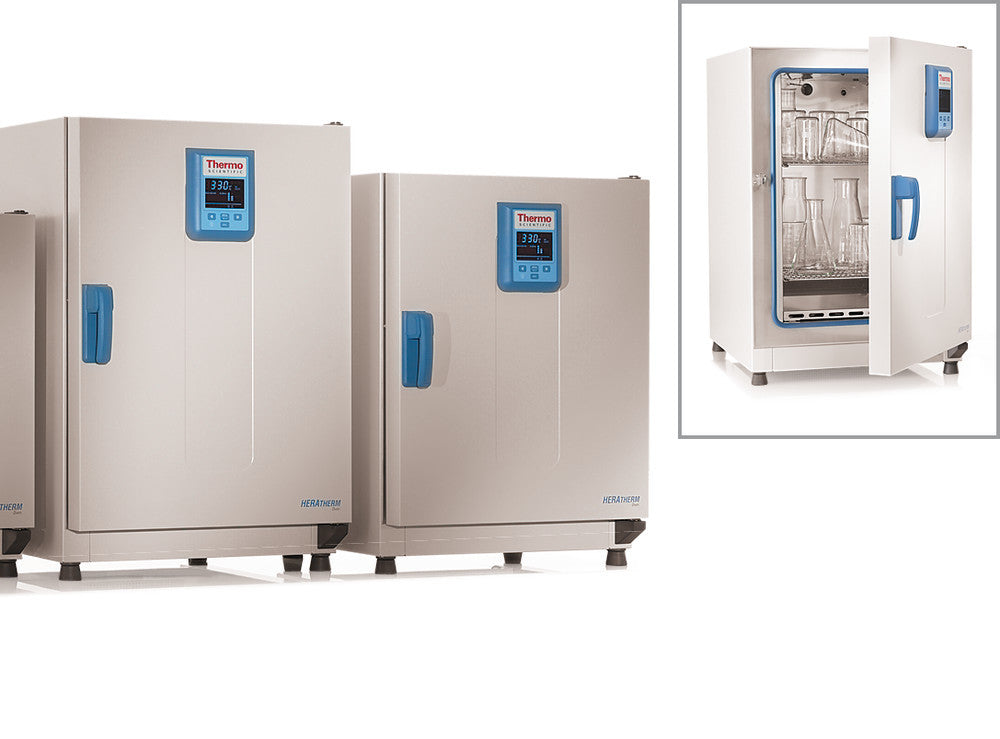

Drying cabinet Advanced Protocol OGH180, w. natural convection, 168 l, max. 330°C, incl. 2 removable inserts
General features:
- Smooth inner housing and round edges make it easy to clean
- Automatic overheating alarm
- Microprocessor control
- Setting accuracy ±1 K
- RS 232 port
- Natural convection for gentle drying and heating with low air turbulence (e.g. powder or film) or air circulating mode for rapid drying and heating
- Depth of handle and display (65 mm) not included in depth; adjustable feet (35 mm) not included in height
- Mains connection 230 V, 50 Hz
- Temperature range: 50 to 330 °C
- Stainless steel interior (1.4301)
- Switch on/off after a preset time
- Weekly time setting or real-time control
- Programmable control for temperature ramps and dwell times (memory for 10 programs each with 10 individual steps)
- Bushing (Ø 19 mm) at the back enables sensors to be inserted, e.g. for independent data monitoring
- With varnished outer housing
Delivery incl. 2 removable shelves. Please note: additional transport costs apply for delivery to the place of use. We will be happy to inform you of these on request.
Technical Information
| Type | OGH180 |
| Vol. | 168 l |
| Operating temperature | 50 to 330 °C |
| Inner width | 438 mm |
| Inner height | 680 mm |
| Inner depth | 564 mm |
| Outer width | 640 mm |
| Outer height | 920 mm |
| Outer depth | 738 mm |
| Max. removable shelves | 19 |
| Rated power | 3100 W |
| Temporal temp. variance | ±0,3 °C |
| Spatial temp. deviation | ±2,5 °C |
| Weight | 69 kg |
| Mains connection | 230 V, 50 Hz |
