Description

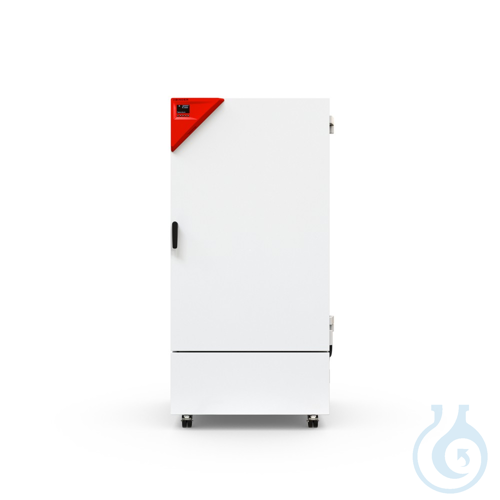

KB 470-UL (E7) (120V) is a standard cooling incubator from the KB series for laboratories that require a wide temperature range and substantial chamber capacity. With 472 L interior volume, the unit accommodates larger sample loads, multiple culture formats, and temperature-sensitive materials used in research, quality control, and industrial laboratory practice. The model runs on 120 V 1~ 50/60 Hz and is supplied as the UL configuration in the standard version. Pack size is 1 pc; net weight is 258 kg and gross weight is 260 kg. KB series cooling incubators from manufacturer Binder are intended for professional environments where reliable cooling and incubation must be combined in one platform. Originating from Germany (Baden-Württemberg), the instrument is classified for exclusive non-household professional use. The expanded working volume of the KB 470-UL (E7) supports efficient handling of higher sample throughput while maintaining controlled thermal conditions across a broad temperature working range typical of the KB series.
This article is part of Incubators, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Model: KB 470-UL (E7) (120V)
- Interior volume: 472 L
- Power supply: 120 V 1~ 50/60 Hz
- Series: KB cooling incubators, wide temperature range
- Version: Standard
- Manufacturer: Binder
- UNSPSC: 41104900
- Interior dimensions: 656 × 575 × 1250 mm (W × D × H)
- Exterior dimensions: 930 × 900 × 1951 mm (W × D × H)
- Weight, empty: 212 kg
- Voltage: 120 V, 50/60 Hz
- Nominal power: 1.3 kW
- Temperature range: 0...70 °C
- Temperature uniformity at 37 °C: ±0.2 K
- Temperature fluctuation at 37 °C: ±0.1 K
- Recovery time after a 30 s door opening at 37 °C: 3 min
- Max. heat compensation at 37 °C: 530 W
- Inner doors: 1
- Shelves, standard / maximum: 2/16
- Load per rack: 40 kg
- Permitted load: 200 kg
- Energy consumption at 25 °C: 170 Wh/h
- Energy consumption at 37 °C: 165 Wh/h
- Wall clearance, side: 180 mm
- Wall clearance, back: 100 mm
- Sound pressure level at 25 °C: 51 dB(A)
- Data Sheet:
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about KB 470-UL (E7) (120V)
What is this article?
KB 470-UL (E7) (120V) is the article on this page. Luminix Health distributes Binder for laboratory use. It sits in Incubators, inside Heating, drying & cooling, in Lab instruments.
An incubator holds the mild, even temperature a culture needs, often 25 °C or 37 °C, sometimes with carbon dioxide. It is not a drying oven. Uniformity and, for cells, the gas control are the specification. A flask of cells in a drying oven is a dead flask.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
