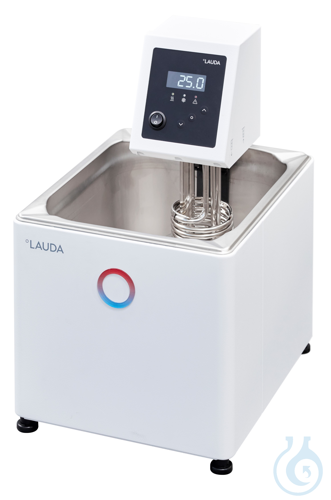

LAUDA Alpha A 6 Heating thermostat 220 V; 60 Hz + 230 V; 50 Hz

LAUDA Alpha A 6
Heating thermostat 220 V; 60 Hz + 230 V; 50 Hz

Features:
Thermostatic bath with simplest operation
1-line LED display for display of actual or set temperature
User-friendly menu guidance with simplest 3-key operation
Fully electronic continuous controller
Low level and overtemperature protection for use with non-flammable liquids
Acoustic and visual alarm
Circulating pump with flow reduction
Bath from deep-drawn stainless steel
Optional cooling coil and pump circulation set available

Technical Features (according to DIN 12876):
Working temperature range: 25 ... 100 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Heater power max.: 1.5 kW
Power consumption max.: 1.5 kW
Current max.: 7 A
Pump Pressure max.: 0,2 bar
Pump flow rate max. (pressure): 15 L/min
Bath volume min. / max.: 2.5 / 5.5 L
Size of bath (W x D x H): 145 x 161 x 150 mm
Overall dimensions (WxDxH): 181 x 332 x 370 mm
Weight: 7 kg
Power supply: 220 V; 60 Hz / 230 V; 50 Hz
Power plug: Power cord with angled plug (CEE7/7)

Standard Accessory:
1 screw clamp
Flow reduction
