Beschreibung

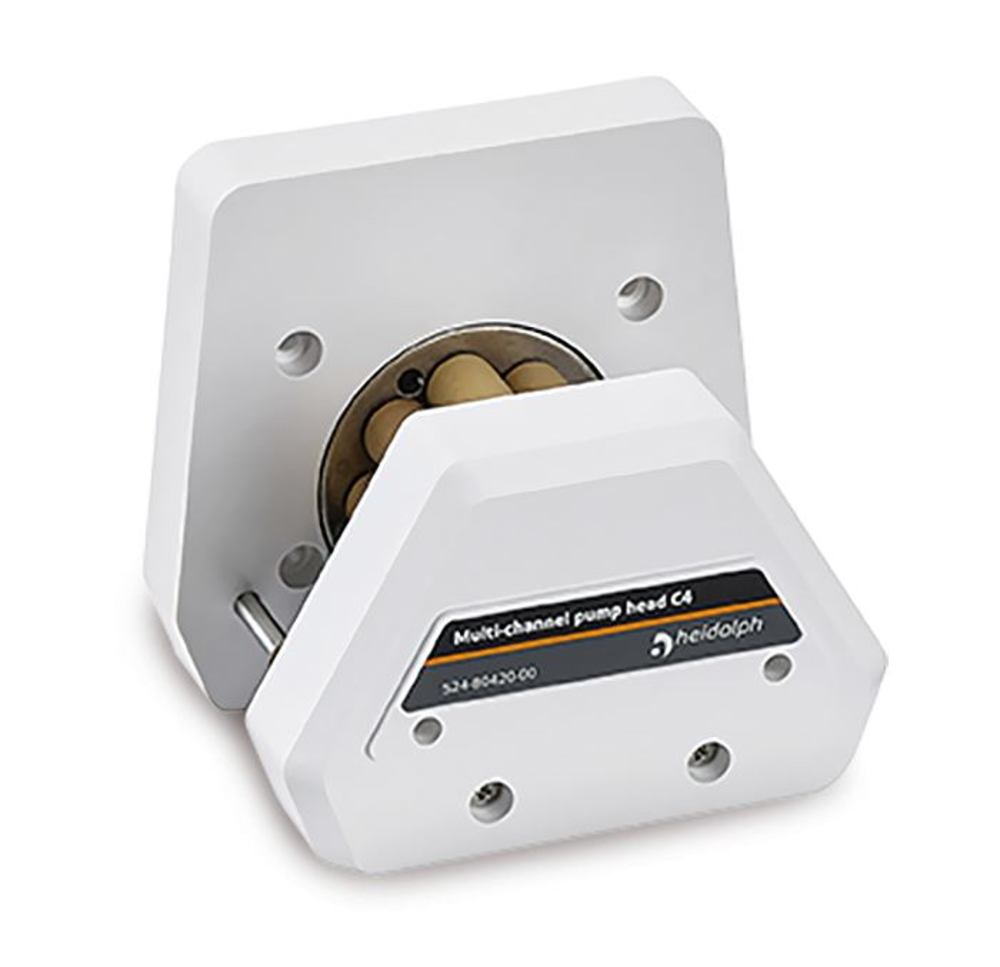

4-channel pump head, for pump drive Hei-FLOW 01
With automatic hose anchoring.
- For use with up to four hose cassettes, with snap lock for easy insertion even during operation
- Low pulsation is ensured by eight rollers
- For two stopper hoses with a wall thickness of 0.9 mm
- Hose outer diameters of between 0.2 mm and 2.8 mm are freely selectable
- To feed and convey different volumes, hoses of different diameters can be inserted into the hose cassette
- Roller pressure can be adjusted using an adjustment screw
| Delivery rate depending on the hose size: | |
| Inner Ø (mm) | Delivery rate (ml/min) |
| Ultimate 120 | |
| 0.2 | 0.02-0.49 |
| 0.5 | 0.08-2 |
| 0.9 | 0.24-6 |
| 1.4 | 0.60-14 |
| 6.3 | 2-36 |
Delivery without adapter and hose cassettes (max. 4), please order separately.
Technical Information
| Version | Four-channel pump head |
| Type | C4 |
