Beschreibung

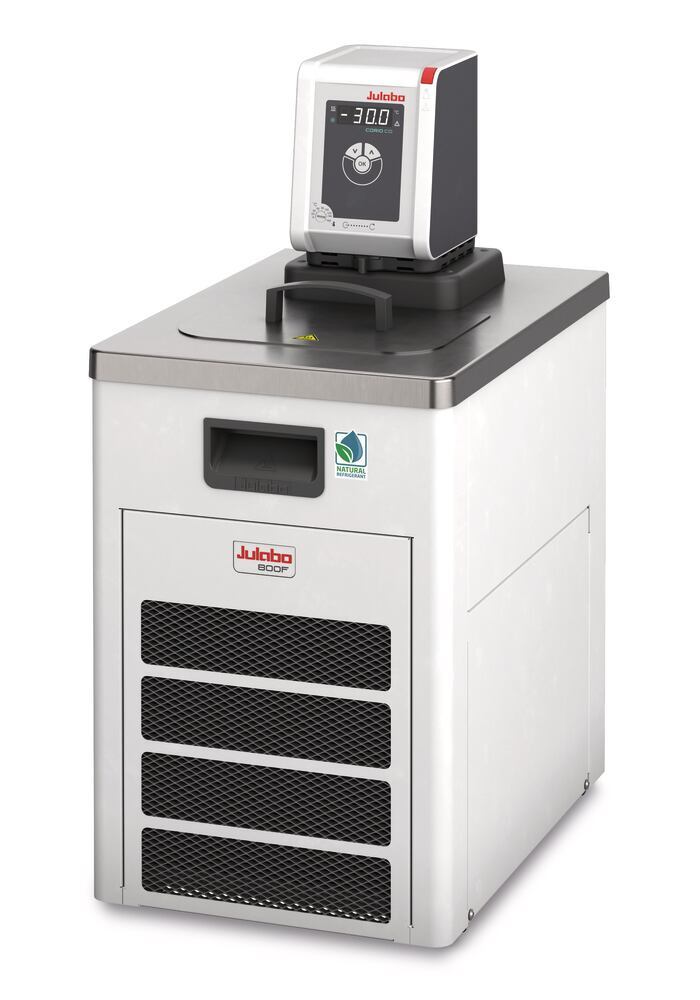

CORIO(TM) CD-800F refr. circ. thermostat, Bath opening 180 x 130mm, -40 to +150 °C, Incl. bath cover
For temperature control of samples in baths or for enclosed external instruments such as refractometers, polarimeters, photometers, viscosimeters, electrophoresis chambers, chromatography columns and rotary evaporators.
- External pump connections each with 2 hose connectors for hoses with inside Ø of 8 and 12 mm
- With draincock
- Handles (front and back) for easy transportation
- USB port
- III (FL) = flammable liquids
Delivery incl. bath cover.
Technical Information
| Type | CORIO™ CD-800F |
| Operating temperature | -40 to +150 °C |
| Temperature constancy | ±0,03 K |
| Display resolution | 0,1 °C |
| Setting resolution | 0.1 °C |
| Heating output | 2000 W |
| Cooling capacity | 20 °C: 850 W 0 °C: 750 W -20 °C: 400 W |
| Max. pump pressure | 350 mbar |
| Max. flow | 15 l/min |
| Bath volume | 5-7,5 l |
| Bath opening | 180 x 130 mm |
| Inner depth | 150 mm |
| Outer width | 330 mm |
| Outer depth | 470 mm |
| Outer height | 700 mm |
| Safety class | III (FL) |
| Mains connection | 230 V, 50 Hz |
