Beschreibung

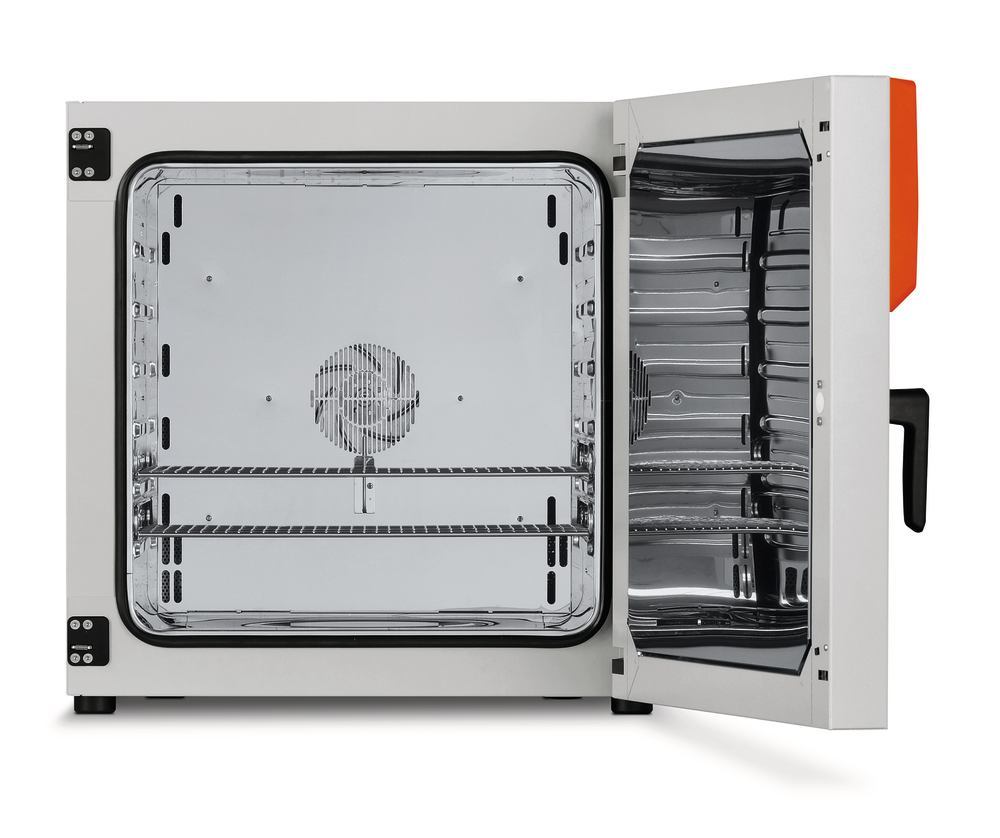

Heating-/drying ovens FED 115, 116 l,, forced air circulation, regulable, RS422, incl. 2 chrome plated grids
- Operating temperature from 15 °C above room temperature to 300 °CSetting temperature from 30 to 300 °C; setting accuracy: ±1 °C
- Adjustable air exchange and rear exhaust air pipe Ø 50 mm
- Models with volumes of 400 l or more come with a double-leaf door
- With integrated timer with range from 0 to 99 h
- Power supply for models 23 to 260: 230 V, 50/60 HzPower supply for models 400 and 720: 400 V, 50/60 Hz.3 N ~
With forced air circulation (fan).
- Adjustable fan speed (min. speed 30%)
- 1 programmable temperature ramp
- RS 422 interface
- Timer function selection: – the heater is switched off when the set time expires – the set time does not start until the actual value equals the selected target value. The heater is switched off when the time expires
- Additional USB port for recording data with models FED 56, FED 115 and FED 260.
Delivery incl. 2 chrome-plated grates.
Technical Information
| Type | FED 115 |
| Vol. | 116 l |
| Operating temperature | from +15 °C above room temperature to +300 °C |
| Inner width | 550 mm |
| Inner height | 550 mm |
| Inner depth | 385 mm |
| Outer width | 713.5 mm |
| Outer height | 732 mm |
| Outer depth | 676 mm |
| Max. removable shelves | 5 |
| Rated power | 1300 W |
| Temporal temp. variance | ±0,3 °C |
| Spatial temp. deviation | ±1,2 k °C |
| Weight | 54 kg |
| Mains connection | 230 V, 50/60 Hz |
