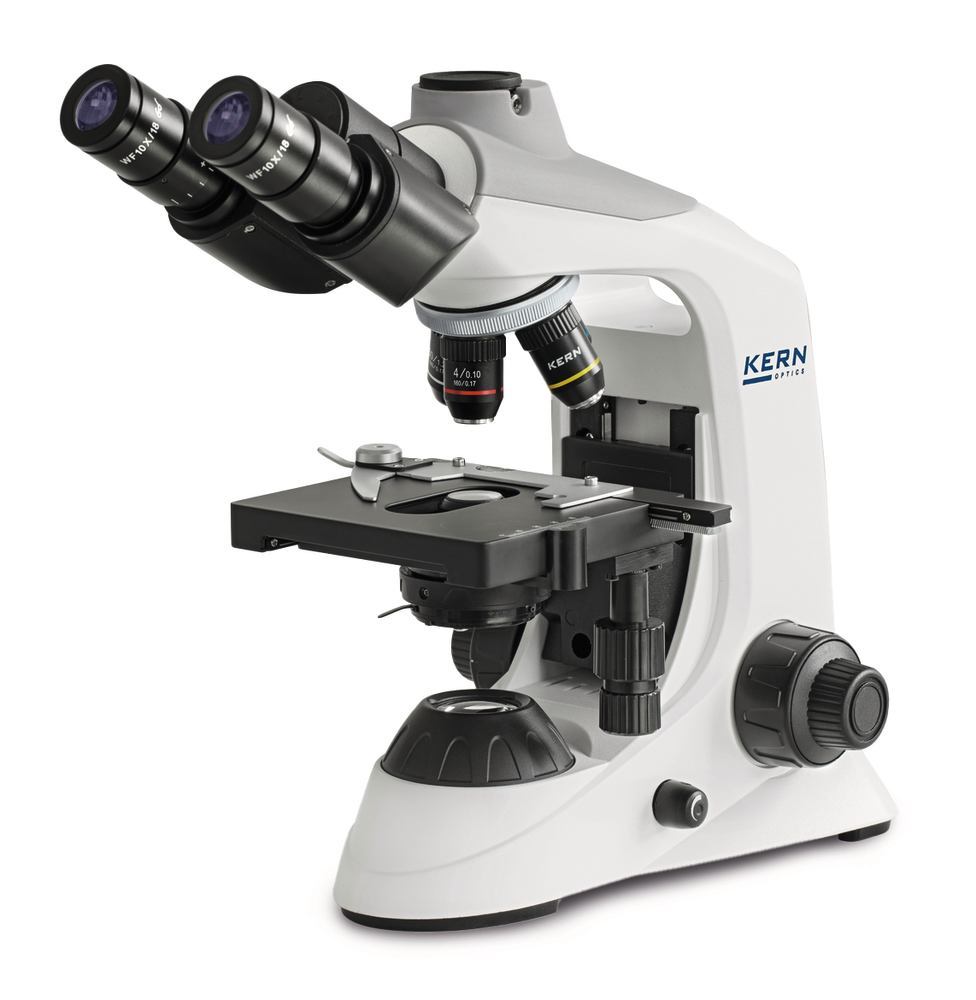

OBE 134 transmitted light microscope, Trinocular

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

Technische Unterstützung benötigt?

OBE 134 doorvallend lichtmicroscoop, trinoculair, incl. oogschelpen en stofkap

Type	OBE 134
Tube	trinocular
Total magnification	40x, 100x, 400x, 1000x
Magnification type	turret
Ocular magnification	wide-field 10x
Lenses	achromatic
Lens arrangement	4-way, tilted forwards
Lens magnification	- 4x/N.A. 0.10, W.D. 18.6 mm
Field of view	18 mm
Dioptre compensation	on one side
Angular observation	30 °
Head	can be rotated 360°
Distance between eyepieces	48-75 mm
Condenser	Abbe N.A. 1.25 with aperture cover
Köhler illumination	no
Light source	LED
Type of lighting	transmitted light
Image focusing	coaxial coarse and fine focus with scale: 2 µm
Optics	finite
Microscope stage	125 x 115 mm area
Power supply	mains-powered
Mains connection	100-240 V, 50/60 Hz

Technische Unterstützung benötigt?

OBE 134 doorvallend lichtmicroscoop
