Beschreibung

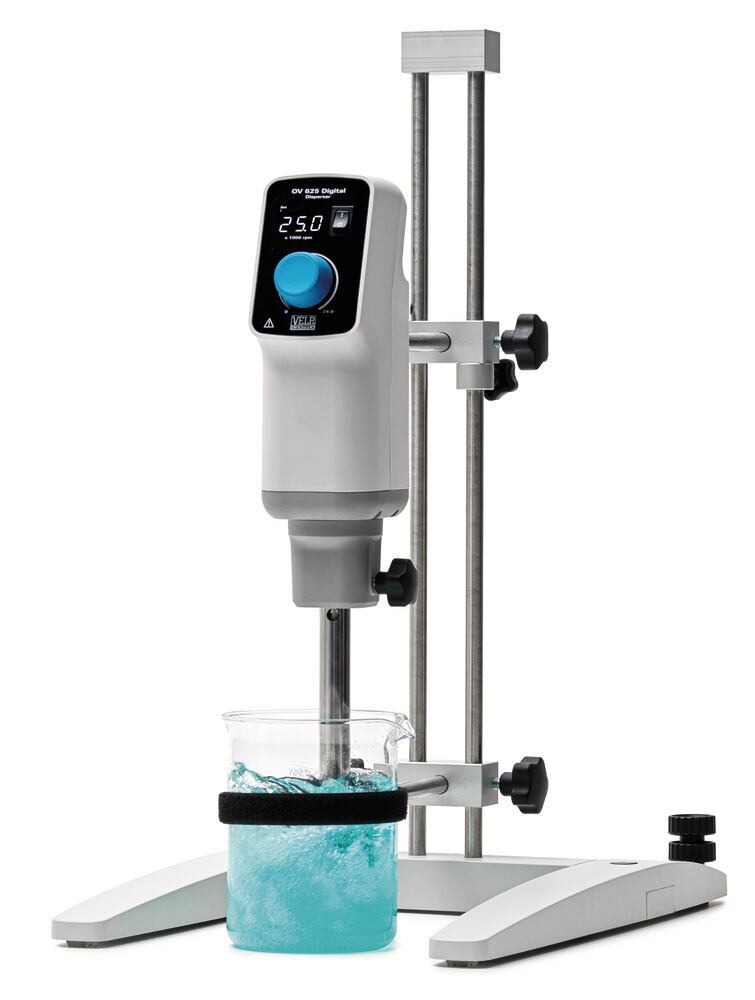

OV 625 Digital dispersion unit, Complete set, 3000-25,000/min, incl. extension arm (L 150 x Ø13 mm), D20-S20C-P-R20S dispersion tool and mini H-stand with sleeve for device attachment and belt clamp.
- With digital speed display
- Safety functions: soft start, motor overload protection and overheating alarm
| D20-S20C-P-R20S dispersion toolTechnical specifications: | |
| Type | D20-S20C-P-R20S |
| Working range | 10-1500 ml |
| Stator Ø | 20 mm |
| Rotor Ø | 15 mm |
| Gap width between stator and rotor | 0.5 mm |
| Materials in contact with product | PTFE, AISI 316L |
| Temperature range | up to +180 °C |
| Approx. emulsion fineness | 1-10 μm |
| Approx. suspension fineness | 10-50 μm |
Delivery incl. OV 625 Digital, extension arm (L 150 x Ø 13 mm), D20-S20C-P-R20S dispersion tool and mini H-stand with sleeve for device attachment and belt clamp.
Technical Information
| Type | OV 625 Digital complete set |
| Motor power input | 800 W |
| Speed range | 3000 to 25000 rpm |
| Speed display | Digital |
| W x D x H | 92 x 130 x 280 mm |
| Weight | 2,4 kg |
| Mains connection | 100-155 / 200-230 V, 50/60 Hz |
