Beschreibung
PCE-PCO 2 particle counter, incl. battery, charger, USB cable, case, Contains LITHIUM-ION CELLS. Not subject to labelling according to ADR SV 188., UN-Nr. 3481
For mobile measurements. For determining the quantity of dirt particles in the air caused, forexample, by combustion, manufacturing, energy production, vehicle engine emissions and the construction industry.
- Three different methods of counting. Cumulative: adding up the number of particles per measuring channel starting with the largest channel; differential: absolute number of particles per channel; concentration: average number of items per channel (=particle density)
- Measurement duration can be adjusted or measurement via start/stop button
- Also sensors for continuous measurement of air temperature, dew point temperature, wet-bulb temperature and relative air humidity
- Automatic data storage once the measuring process is complete
- Built-in camera on the back to link the measurement data to image/video material
- Automatic shutdown can be adjusted (3 to 60 minutes) and deactivated
Alongside the particle concentration, you can also determine the mass concentration. There is the PM 2.5 measuring channel (for particles in the 2.5 µm range) and the PM 10 measuring channel (for particles in the 10 µm) range.

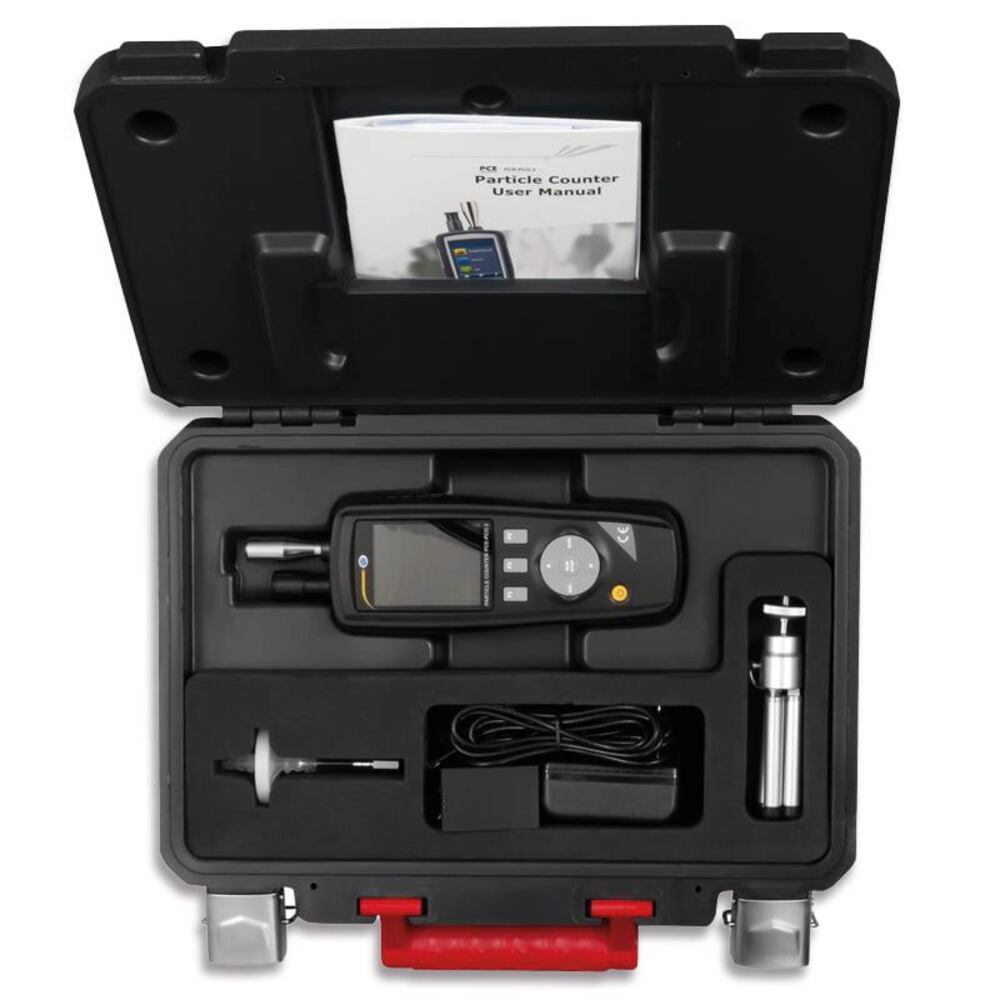

Delivery incl. zero filter, battery, charger, USB cable, stand and hardshell case.
Technical Information
| Type | PCE-PCO 2 |
| Parameters | mass concentration particles temperature humidity |
| Measuring channel sizes | 0,3/0,5/1,0/2,5/5,0/10 μmPM 2,5/ PM 10 |
| Measuring range | 0-2000 μg/m3 |
| Reports | <5% at 2,000,000 particles per ft3 |
| Counting efficiency | 50 % @ 0,3 μm 100 % @ >0,45 µm |
| Flow rate | 2.83 l/min |
| Sensor | laser scattered light |
| Temperature measuring range | 0 to 50 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | ±0.5 °C (10-40 °C) ±1.0 °C (outside) |
| Rel. humidity measuring range | 0 to 100 % |
| Rel. humidity resolution | 0,1 % |
| Rel. humidity accuracy | ±3% (40-60%) ±3.5% (20-40% and 60-80%) ±5% (0-20% and 80-100%) |
| Display | yes |
| Display type | Light-up LCD |
| Display size | 2,8 inch |
| Data memory | 80 MB (internal) for 5000 datasetsMicro SD card up to 8 GB (optional) |
| Port | Mini USB |
| L x W x H | 240 x 75 x 55 mm |
| Weight | 420 g |
| Power supply | battery (7.4 V), lithium-polymer |
