Beschreibung

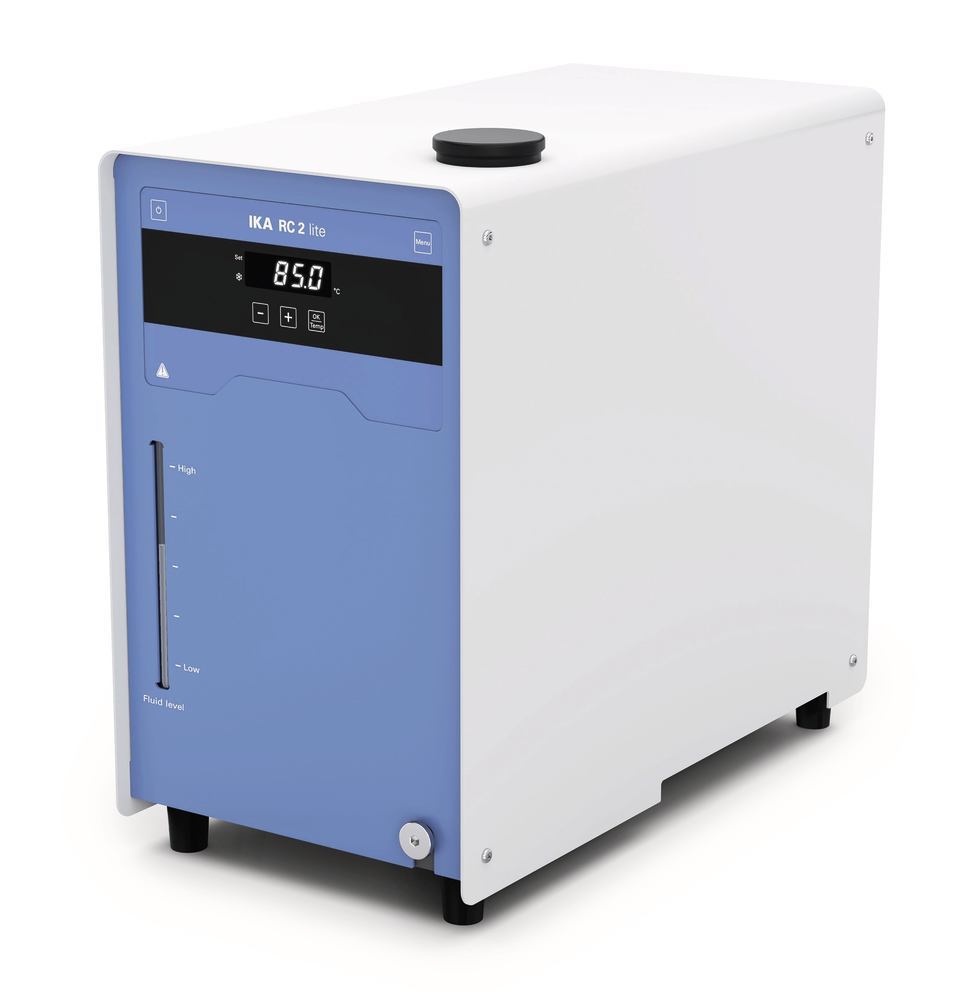

RC 2 lite recirculating cooler, Operating temp. -10-+40 °C, 400 W/20 °C
Application
Cooling of rotary evaporators, return condensers or as a cooling source for devices which dissipate heat by means of a heat exchanger (e.g. double-walled grinding containers, cooled incubators, laboratory reactors, cooling coils).
- With pressure and suction pump
- Illuminated window to show fill level
- Discharge nozzle for easy drainage
- USB/RS 232 interface
- I (NFL) = non-flammable liquids
Delivery incl. hose connectors suitable for hoses with internal Ø 8 mm.
Technical Information
| Type | RC 2 lite |
| Operating temperature | -10 to +40 °C |
| Temperature constancy | ±0,5 K |
| Display resolution | 0.1 °C |
| Heating output | 0 W |
| Cooling capacity | 20 °C: 400 W 10 °C: 350 W 0 °C: 250 W -10 °C: 140 W |
| Max. pump pressure | 350 mbar |
| Max. flow | 18 l/min |
| Max. pump suction | 150 mbar |
| Bath volume | 1-3.5 l |
| Outer width | 225 mm |
| Outer depth | 430 mm |
| Outer height | 385 mm |
| Safety class | I (NFL) |
| Weight | 24.5 kg |
| Mains connection | 230 V, 50/60 Hz |
