Beschreibung

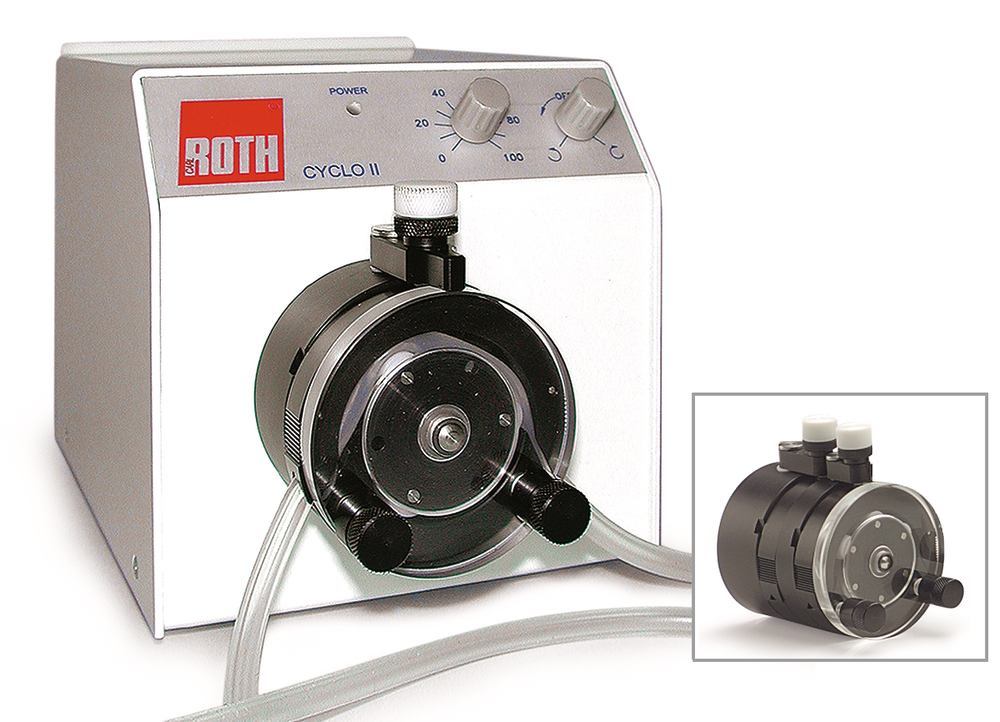

ROTH Cyclo II pericyclic pump, with 1-channel pump head, 6 rolls, incl. tube cassette for tube with innerØ 4.8 mm and wall thickness 1.6 mm.
For all applications in the laboratory and analytics and biotechnology applications.
- Pump head (Ø 62 mm) can be rotated 90°
- Easy cleaning thanks to easily removable pump head
- Simple to use with two rotary knobs:Continuous speed adjustment from 0-100%Reversible direction of rotation (clockwise/counterclockwise)
- Hose with a wall thickness of 1.6 mm can be used
- Variable hose contact pressure
- Easy hose replacement in seconds
- Temperature and current limiting for maximum reliability
- Stackable
| Delivery rate depending on the hose size and the number of rollers in the pump head: | ||
| Inner Ø (mm) | Delivery rate | |
| 3-roller | 6-roller | |
| 1,6 | 1,5 - 30 | 1,2 - 24 |
| 3,2 | 6 - 110 | 4,4 - 88 |
| 4,8 | 12 - 240 | 9,6 - 192 |
Optional accessory (please order separately): hose cassettes for different hose Ø.
For lower pulsation.
Delivery incl. hose cassette for hose with inner Ø of 4.8 mm and wall thickness of 1.6 mm.Without pump hoses, please order separately.
Technical Information
| Version | 1-channel |
| Pump type | 1-channel |
| Pump head | 6 rollers |
| Delivery rate | 9,6-192 ml/min |
| Max. pressure | 1 bar |
| Motor power | 10 W |
| L x W x H | 131 x 134 x 190 mm |
| Weight | 1,6 kg |
| Mains connection | 100-230 V |
