Beschreibung

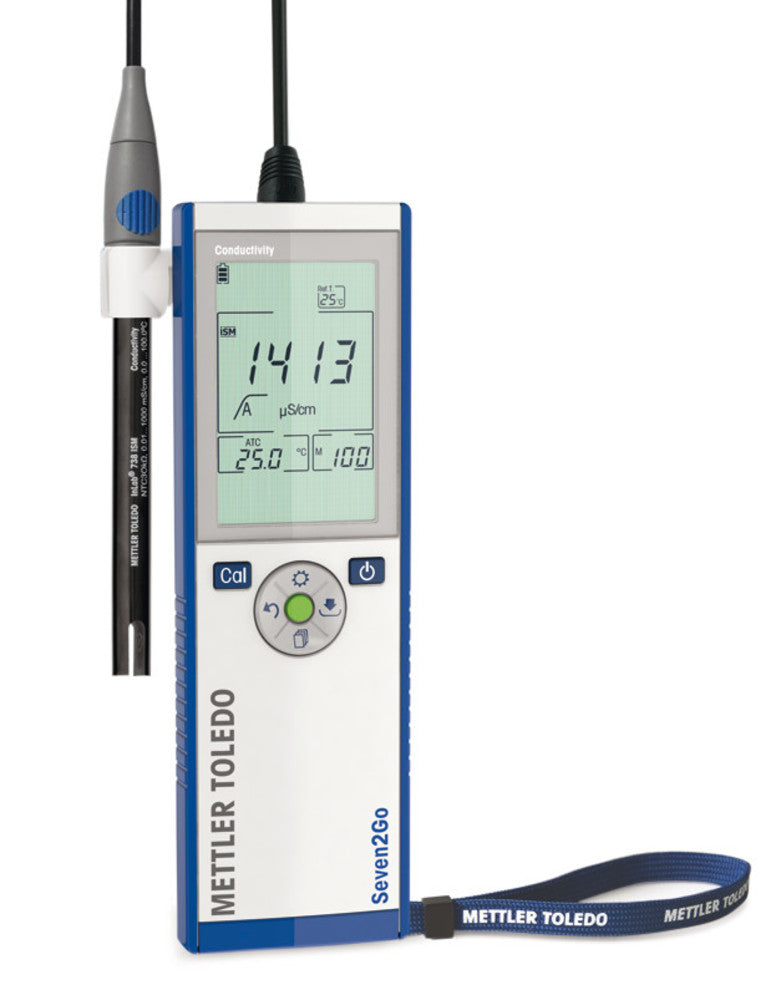

Seven2Go(TM) pocket conductivity meter, S3-standard Kit, incl. conductivity sensor InLab® 738-ISM®-IP 67, conductivity test solutions and batteries
Robust conductivity meter designed to withstand the harshest environments.
- Water and dust-proof, casing with impact protection
- Automatic and manual temperature correction
- Automatic, manual and timer-controlled endpoint determination
- User-defined intermittent measurement possible (max. operating time 1 h)
- Selectable reference temperature
- Intelligent Sensor Management (ISM®) for automatic recognition of ISM® sensors and reading in calibration data
With robust conductivity sensor for medium to very high conductivity:InLab® 738-ISM® (IP 67) with integrated temperature gauge. Measuring range: 0.01 to 1000 S/cm. Plastic shaft, L/Ø: 120/12 mm. Operating range: 0 to +100 °C.
Delivery incl. InLab® 738-ISM® (IP 67) conductivity sensor, test solutions (1413 μS/cm and 12.88 mS/cm, each with 2 x 20 ml sachets), electrode clip and batteries.
Technical Information
| Type | Seven2Go™ S3 Standard |
| Sensor | InLab® 738-ISM® |
| Parameters | conductivity TDS salinity temperature |
| Conductivity measuring range | 0 µS/cm to 500 mS/cm |
| Conductivity resolution | automatic (0.01 µS/cm - 1 mS/cm) |
| Conductivity accuracy | ±0.5% of the measured value |
| Calibration points | 1 (standard and user-defined) |
| Reference temperature conductivity | +20 / +25 °C |
| TDS measuring range | 0 mg/l to 300 g/l ppt |
| TDS resolution | automatic (0.01 mg/l - 1 g/l) |
| TDS accuracy | ±0.5% of the measured value |
| Salinity measuring range | 0 to 42 psu |
| Salinity resolution | automatic (0.01 psu - 0.1 psu) |
| Temperature measuring range | -5 to +105 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | ±0,2 °C |
| Data memory | 200 measured values |
| Connection | LTW 7-pin (IP 67) |
| ISM Technology | yes |
| IP rating | 67 |
| L x W x H | 220 x 70 x 35 mm |
| Weight | 270 g |
| Power supply | 4 x 1.5 V AA batteries |
