Beschreibung

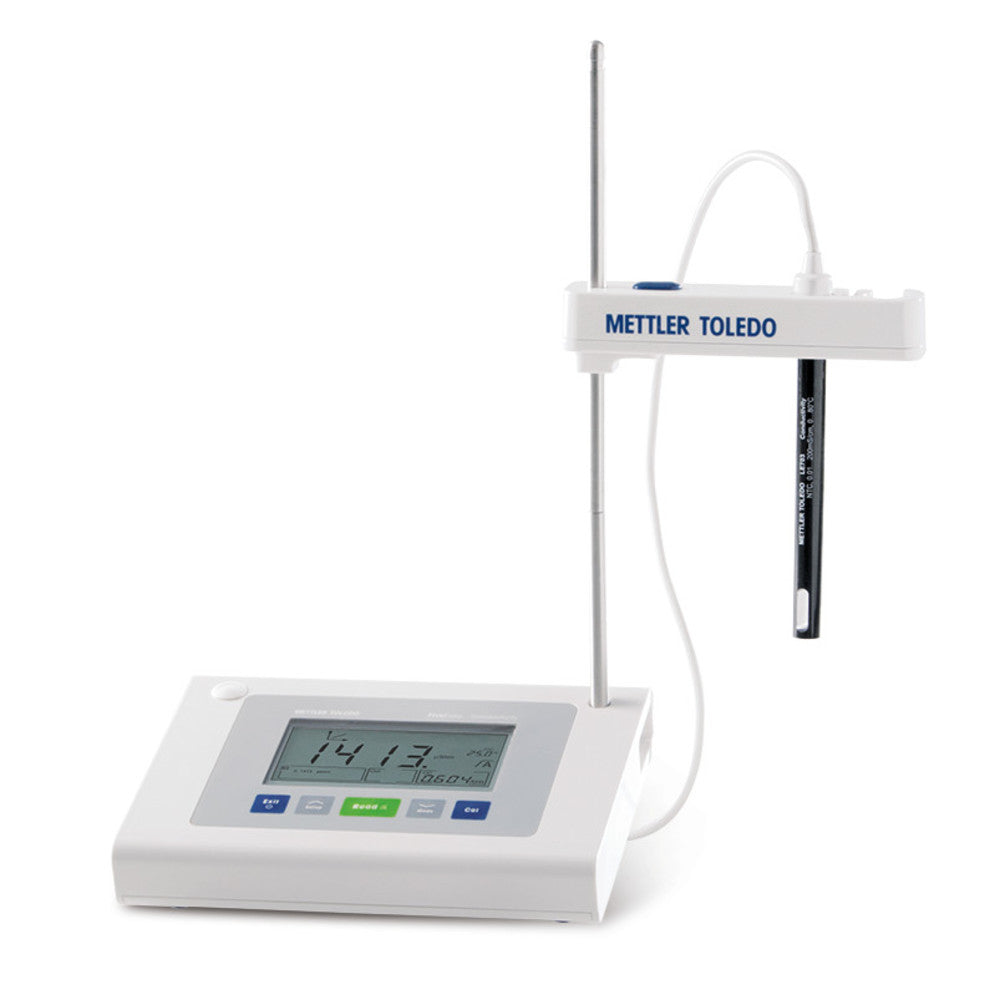

Benchtop conductivity meter FiveEasy(TM), Starter-Kit FE30-Kit, incl. conductivity electrode model LE703, electrode arm, conductivity test solutions 1413 µS/cm and 12.88 mS/cm (2 x 30 ml bags of each), mains adapter
- Space-saving design with large display
- Simple, user-friendly menu
- Automatic calibration with three predefined standards
- Automatic or manual temperature correction
- Automatically or manually end a measurement; with acoustic and visual endpoint signal
- Saves the current calibration
- Selectable reference temperature
With robust conductivity sensor for medium to very high conductivity:LE703 with integrated temperature gauge. Measuring range: 0.01 to 200 S/cm. Plastic shaft, L/Ø: 120/12 mm. Operating range: 0 to +80 °C.
Delivery incl. conductivity electrode type LE703, test solutions (1413 μS/cm and 12.88 mS/cm, each with 2 x 20 ml sachets), electrode arm and mains adapter.
Technical Information
| Type | FiveEasy™ F30 Standard |
| Sensor | LE703 |
| Parameters | conductivity TDS temperature |
| Conductivity measuring range | 0 µS/cm to 200 mS/cm |
| Conductivity resolution | automatic (0.01 µS/cm - 0.1 mS/cm) |
| Conductivity accuracy | ±0.5% of the measured value |
| Calibration points | 1 (standard) |
| Reference temperature conductivity | +20 / +25 °C |
| TDS measuring range | 0 mg/l to 200 g/l ppt |
| TDS resolution | automatic (0.1 mg/l - 0.1 g/l) |
| TDS accuracy | ±0.5% of the measured value |
| Temperature measuring range | 0 to +100 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | ±0.5 °C |
| Connection | Mini-DIN |
| ISM Technology | no |
| L x W x H | 227 x 147 x 70 mm |
| Power supply | mains adapter |
| Mains connection | 100-240 V, 50/60 Hz |
