Beschreibung

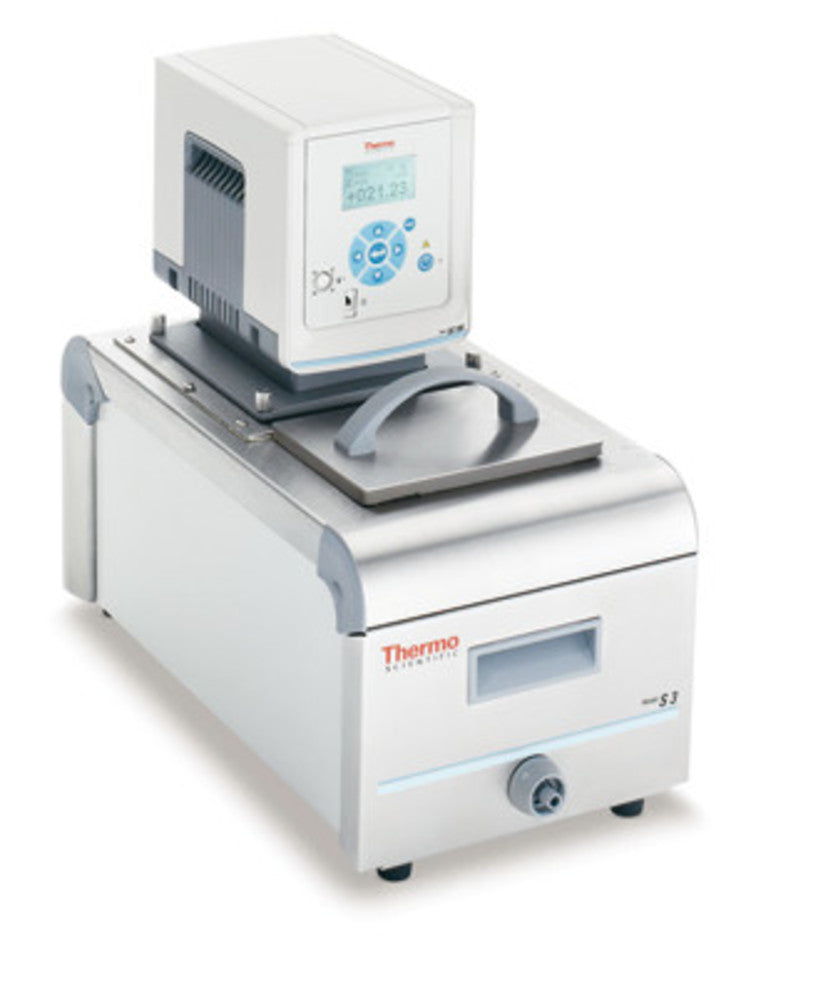

Circul. thermostat w. stainl. steel bath, SC 150-S13, vol. 8 - 13 l, +13 - +150 °C, incl. bath tub lid, pump outlet
For temperature control of external sealed circuits, for example, density measuring instruments, viscosity meters, photometers, refractometers, etc. Simultaneous temperature control possible in the thermostatic bath.
- Simultaneous display of setpoint and actual temperature
- Display resolution 0.1 or 0.01 °C can be selected
- Stainless-steel bath for oil baths
- Thermostat heads can be turned invariably in 90° increments on the bath
- Pumps with 2-stage turbulence reduction system
- Drain opening (on the front)
- Bath with handles
- Hose connectors for tubes with 8 and 12 mm inside Ø
- A water cooling coil is also available if required (please order separately)
- III (FL) = flammable liquids
Delivery incl. circulation set for external circulation and bath cover.
Technical Information
| Type | SC 150-S13 |
| Operating temperature | From +13 °C above room temperature to +150 °C |
| Temperature constancy | ±0,02 K |
| Display resolution | 0,1/0,01 °C |
| Heating output | 2000 W |
| Max. pump pressure | 300 mbar |
| Max. flow | 17 l/min |
| Bath volume | 8-13 l |
| Bath opening | 239 x 110 mm |
| Inner depth | 200 mm |
| Outer width | 321 mm |
| Outer depth | 429 mm |
| Outer height | 457 mm |
| Safety class | III (FL) |
