Beschreibung

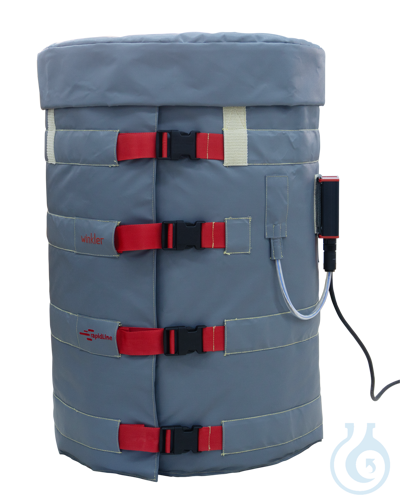

Drum heater T-Series rapidLine; Operating voltage 230 VAC; Appliance class I;
Nominal power 1,100 W; Max. admissible operating temperature 200 °C; for drums from 105-120 L
Operation with a temperature controller is always required.
· Outer sheath: PTFE-coated glass fabric
· Fastening: adjustable tension straps with buckles and fastening hooks
· suitable for drum circumferences: 1.400 - 1,700 mm
· Height: 630 mm
· For operation the temperature controller W3105-5651 (WRL430PW-0200WIN2) is necessary.
The heater is characterized by a particularly uniform heat distribution and input.
For heating up, we recommend using the optionally available insulating lid.
Heat losses via the bottom area of the tank must be minimized by the customer
(Installation on e.g. insulating base).
The drum heaters offered by us are manufactured in protection class IP 54.
In case of outdoor installation, we recommend that they be equipped with suitable
protection against direct environmental influences (e.g. protective roof).
old item number: WODTX121-230ZP203-WIN2
