Beschreibung

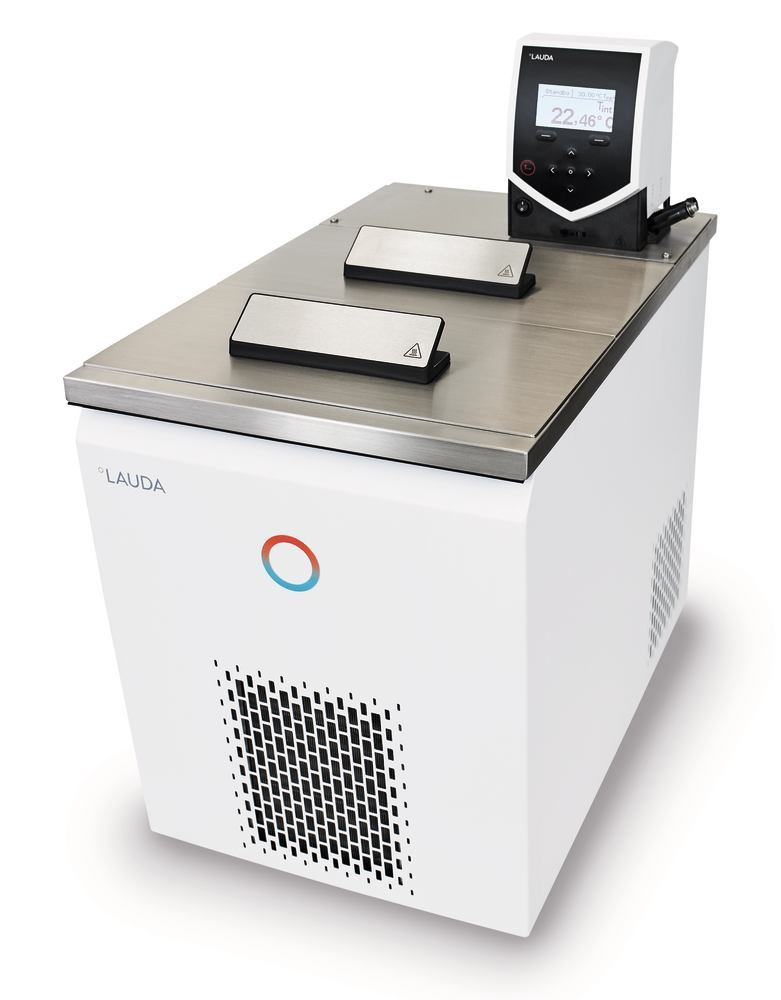

ECO RE 2025S tabletop cooling thermostat, -25 to +200 °C, bath vol. 14-20 l, 2 kW, incl. stainless steel bath tank with two-piece bath cover, sealing plug and hose connectors suitable for hose ID 13 mm.
For controlling temperature of external loads. Option for simultaneous internal temperature control. With integrated cooling system.
- Monochrome graphical LCD display for simultaneous display of actual and target value
- Plain-text menu navigation
- Pump with six adjustable output levels
- USB port
- Integrated programmer, one program with max. 20 segments
- Bath tank made of stainless steel
- Hose connectors for hoses with inner Ø 13 mm
- III (FL) = flammable liquids
Delivery incl. bath cover, ECO RE 2025 model with two-piece cover.
Technical Information
| Type | ECO RE 2025 S |
| Operating temperature | -25 to 200 °C |
| Temperature constancy | ±0,02 K |
| Display resolution | 0,01 °C |
| Setting resolution | 0.01 °C |
| Heating output | 2000 W |
| Cooling capacity | 20 °C: 300 W0 °C: 230 W-20 °C: 60 W -25 °C: 30 W |
| Max. pump pressure | 600 mbar |
| Max. flow | 22 l/min |
| Bath volume | 14-20 l |
| Bath opening | 300 x 350 mm |
| Inner depth | 160 mm |
| Safety class | III (FL) |
| Weight | 38 kg |
| Mains connection | 230 V, 50 Hz |
