Beschreibung

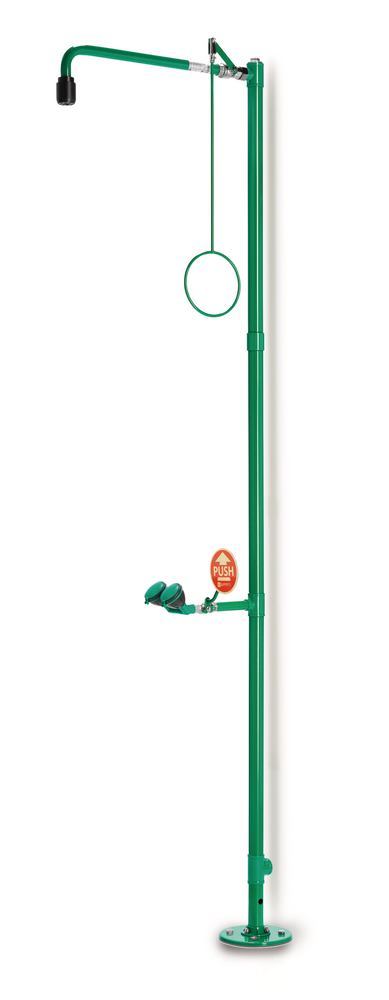

Emergency shower combo f. floor mounting, with eye shower, two spray heads.
DVGW-tested and approved. Acc. to DIN EN 15154-1:2006, DIN EN 15154-2:2006, DIN EN 15154-5:2019 and ANSI Z 358.1.
- Tough stainless steel design with chemical-resistant powder coating in green
- With top and bottom water connection for installation in circulation lines
- 200 x 200 mm base with four attachment holes
- Standpipe: 1 1/4″ made of stainless steel, two-part
- Quick installation system with 3/4″ connecting piece
- Activated via pull rod with ring handle
- High-performance shower head made of chemical-resistant plastic, with improved spray pattern, resists corrosion, as limescale-resistant and maintenance-free as possible, very tough, self-draining
- Body shower water connection: 1 1/4″ internal thread
- Automatic flow regulator
- Body shower volume flow: 50 l/min
- Eye shower volume flow: 14 l/min
- Body shower working range: 1.5 to 3 bar
- Total height: 2330 mm
- Pull rod length: 700 mm
- Projection: 625 mm
- Eye shower installation height: 970 mm
- Eye shower activation via PUSH lever, length 130 mm
- Eye shower working range: 1.5 to 5 bar
- Two 45° angled high-power spray heads with tightly closing dust cover
Delivery incl. information signs according to DIN EN ISO 7010 and ASR A1.3, self-adhesive PVC film, for emergency body shower 150 x 150 mm and eye shower 100 x 100 mm.
Technical Information
| Mounting | Floor |
