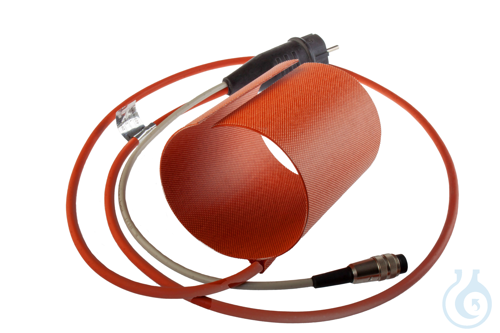

Heating sleeve for MyFerm reaction vessels
The heating sleeve enables uniform, constant and homogeneous temperature control of the fermenter via the outer jacket,
without the need for complex double-walled vessels. The temperatures are freely selectable so that mesophilic and thermophilic operating conditions can be simulated.
Heating capacity approx. 500 W, 230V AC
With PT-100 sensor (permanently installed)
Temperature limiter 100 degrees
Cables: 1.5 m, connection diode plug for PT-100
For vessel diameter: approx. 290 mm
Cuff height: 180 mm
Width: 860 mm
Temperature range: +30 degrees-+70 degrees
Necessary control unit: L14020TER
