Beschreibung

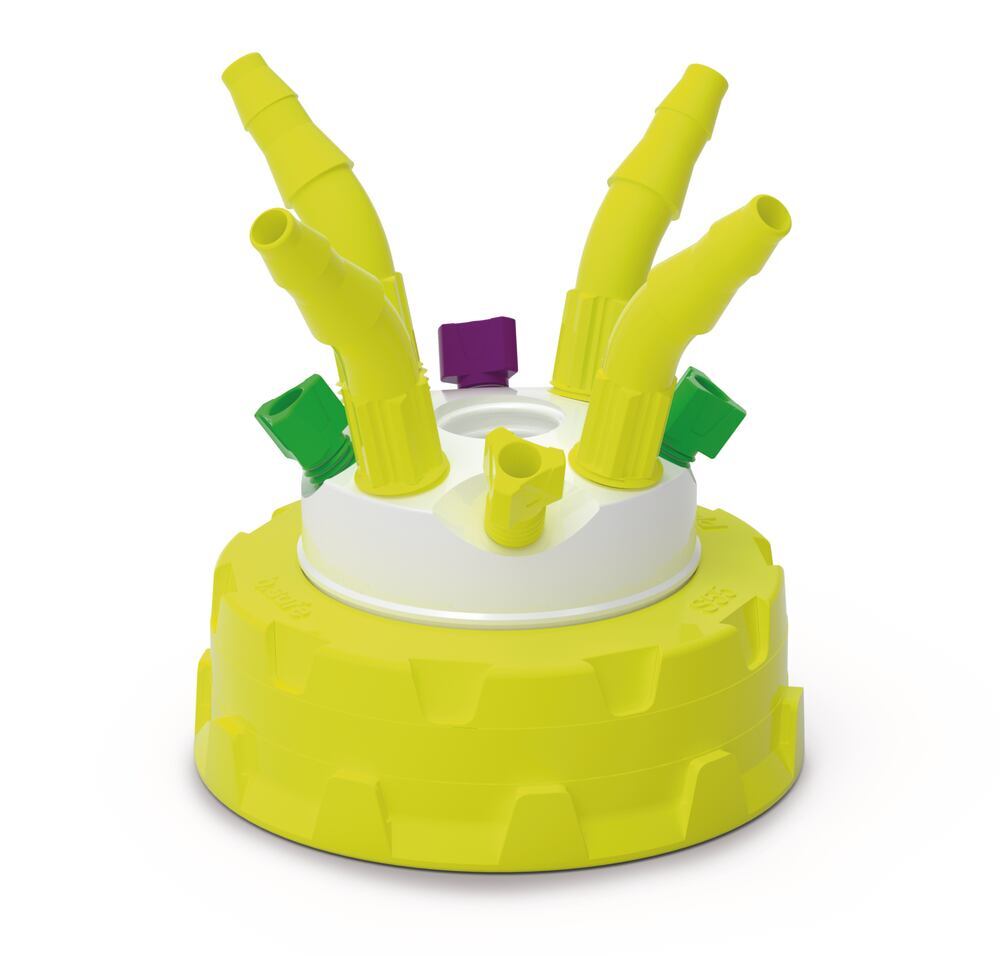

HPLC b.safe Waste Cap , S 55, type C
Material: PTFE, PFA, PP. Autoclavable: yes.
Screw cap made of PP for S 55 threads with freely rotating distributor element made of PTFE. Available with 3, 2 or 4 capillary connections with UNF 1/4″ 28G internal thread for connecting PFA fittings for capillary hoses (external Ø1.6 mm (green)/2.2 mm (purple)/3.2 mm (yellow)). With PFA dummy stopper (white) to seal capillary connections that are not needed. Depending on the version with hose connectors (NPT 1/8″ thread) for hoses with internal Ø 5.5-8 mm. 1 x connection (GL 14 thread) for screwing in a b.safe exhaust air filter. Temperature resistance: 0 to +110 °C.
- For safe disposal of waste solvents without leaks of harmful solvent vapours
- Freely rotating distributor body, prevents the hoses from twisting when replacing the collecting bottle
- Using the fittings, hoses can be easily introduced into the collection container; conical nipple clamps the hose and reliably seals at the connection
- Larger quantities of fluid can optionally be disposed of by connecting hoses with internal Ø5.5-8 mm, via the hose connector connections
- Suitable exhaust air filter available as an option; its activated carbon filling binds harmful solvent vapours
Delivery incl. PFA fittings: 4 x 1.6 mm, 4 x 2.2 mm, 4 x 3.2 mm, 4 x hose connector (NPT 1/8″), 8 x PFA dummy stoppers (4 x UNF 1/4″, 4 x NPT 1/8″). Delivery without exhaust air filter, please order separately.
Technical Information
| Version | With 4 x hose connectors (Ø 5.5-8 mm) |
| Number of connections | 4 |
| For hoses with outer Ø | 1.6 /2.2 /3.2 mm |
| Thread | S 55 |
