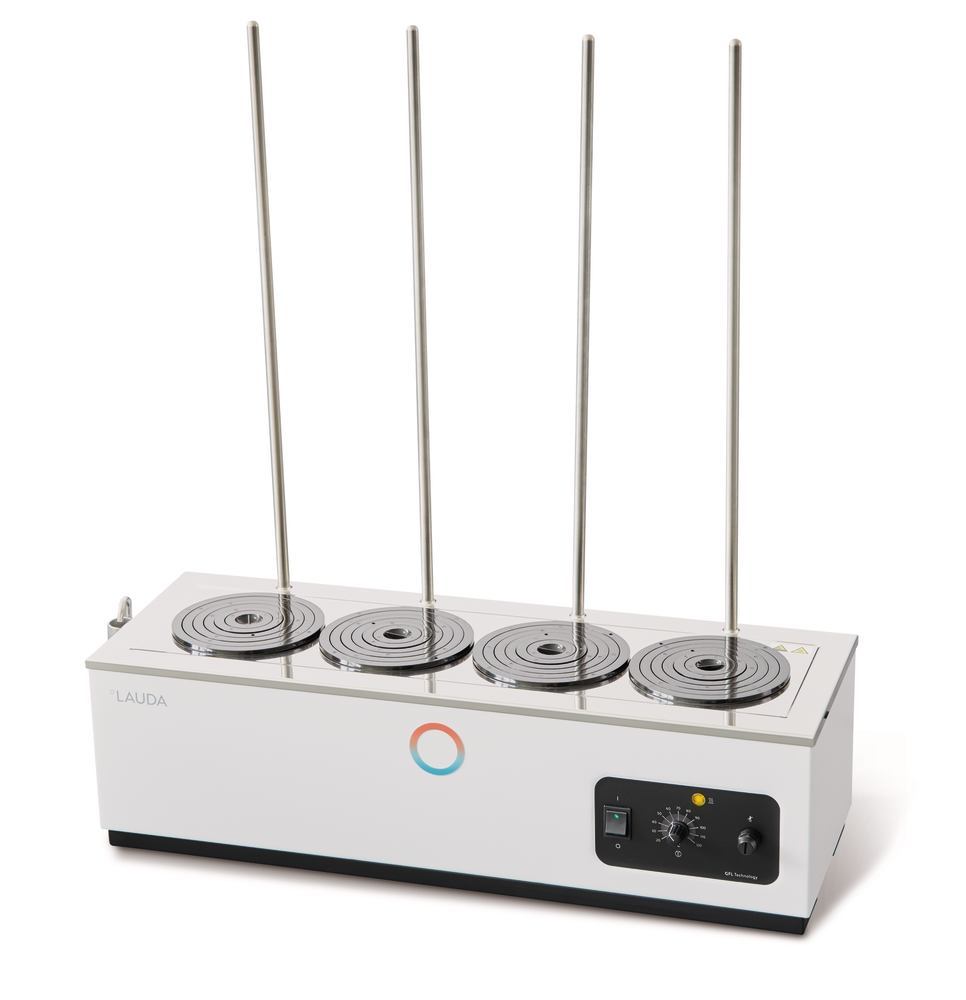

Hydro H 6 V serial water bath , 5 °C above room temp. to 100 °C, 5.3 l, 4 ring set openings, heating output 1000 W
For an operating temperature range from 5 °C above room temperature to 100 °C. Special baths for gentle exhaust steam applications from columns, Erlenmeyer flasks or beakers. For unsupervised continuous operation based on water lever controllers and a low-water safety device. Bath unit, cover frame with openings and split sieve plate over the tubular heating element, made of stainless steel. Bath clearance 150 mm.
Delivery incl. removable flat/perforated lids with multi-part set of rings and stand rods (L 600 x Ø 12 mm).
Technical Information
| Type | Hydro H 6 V |
| Bath volume | 5,3 l |
| Inner height | 90 mm |
| Outer length | 682 mm |
| Outer width | 232 mm |
| Outer height | 190 mm |
| Ring set openings | 4 |
| Ø Flat cover opening | 131 mm |
| Operating temperature | 25 to 100 °C |
| Temperature constancy | ±3 K |
| Heating output | 1000 W |
| Weight | 15 kg |
| Mains connection | 230 V, 50/60 Hz |
