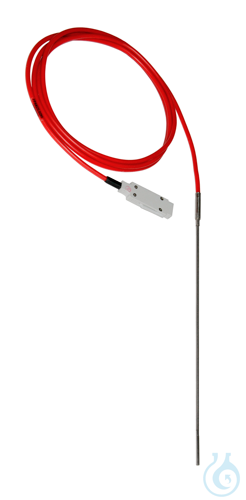

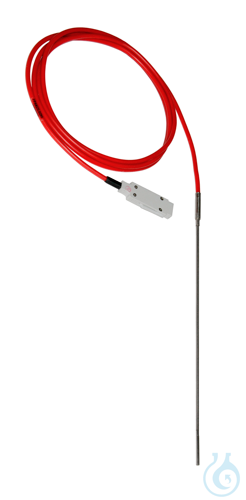

PT100 RESISTANCE THERMOMETER TO IMMERSE
Assembly: WT-MI-303-D-30E-So
General Specifications:
Immersion resistance thermometer Pt100, acc. to DIN EN 60751 Class AA,
4-wire connection, with sheathed cable made of stainless steel, compensating line 4 x 0.22 mm² fix connected through transition casing made of stainless steel ø 6 x 40 mm,
teflon/silicone insulated, cable length: 2 m, cable outlet secured by means of heat-shrink tubing.
Sheat Ø: 3 mm
Nominal length: 250 mm
Range of application: -50 °C to +250 °C
Connection via plug PHYSICS resolution 0.001 °C
Suitable to PHYSICS 1000
Assembly: WT-MI-303-D-30E-So
General Specifications:
Immersion resistance thermometer Pt100, acc. to DIN EN 60751 Class AA,
4-wire connection, with sheathed cable made of stainless steel, compensating line 4 x 0.22 mm² fix connected through transition casing made of stainless steel ø 6 x 40 mm,
teflon/silicone insulated, cable length: 2 m, cable outlet secured by means of heat-shrink tubing.
Sheat Ø: 3 mm
Nominal length: 250 mm
Range of application: -50 °C to +250 °C
Connection via plug PHYSICS resolution 0.001 °C
Suitable to PHYSICS 1000
