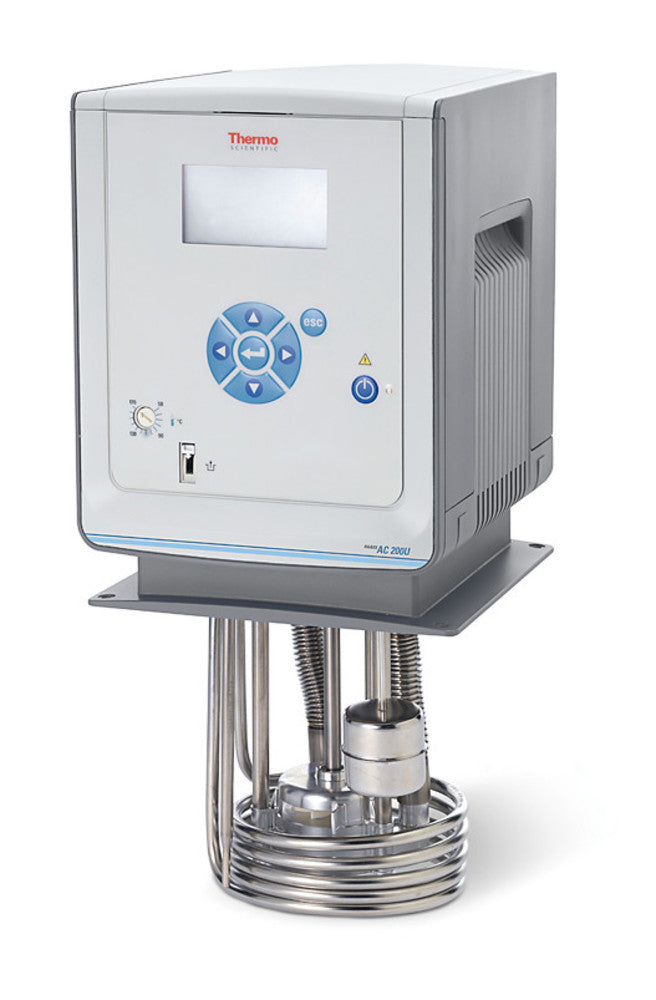

Immersion thermostat AC 200, 2000 W, +25 - +200°C, 475 mbar, cl. III (NFL)
as for SC 100 and SC 150, but also comes with:
- Simultaneous display of setpoint and actual temperature
- Display resolution 0.1 or 0.01 °C can be selected
- Pumps with 3-stage turbulence reduction system
- With screw clamp for bath tubs up to 26 mm thick
- Programmable application temperature alarm with signal that can be selected by the user (On/Off), safe temperature state or switch-off function
- Ramp programming with the option to alter the ramp during operation
- Timer with real-time clock for critical applications
- With bath bridge for attaching to bath tubs (adjustable from 300 to 800 mm)
- I (NFL) = non-flammable liquidsIII (FL) = flammable liquids
Technical Information
| Type | AC 200 |
| Operating temperature | +25 to +200 °C |
| Temperature constancy | ±0,01 K |
| Heating output | 2000 W |
| Max. pump pressure | 475 mbar |
| Max. flow | 20 l/min |
| Max. pump suction | 330 mbar |
| Outer width | 165 mm |
| Outer depth | 195 mm |
| Outer height | 368 mm |
| Safety class | III (FL) |
