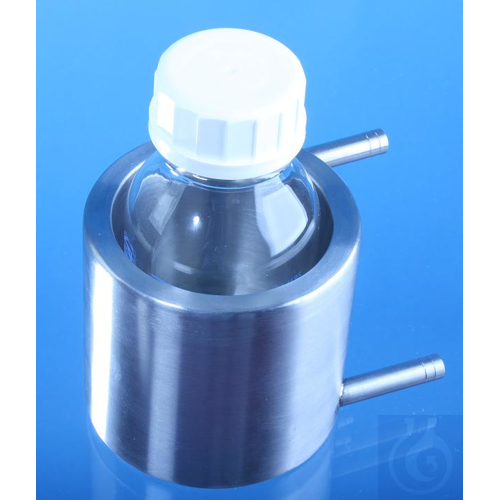

Beschreibung
Inner diameter: 191 mm +1/-0
Outer diameter: 201 mm +2 /-1
Sheath height: 205 mm +-3
- Double jacket, without insulation and bottom.
- controlled temperature control of reactions
- easy exchange of reaction vessels
- connection to external thermostats
- without bottom for upgrading with magnetic stirrers
- Application for laboratory and production
- Olive connection 12 mm for temperature control liquids.
Suitable for laboratory bottles:
DURAN® Art: 112185173, 102113949
Options:
SON05000I4 Insulation
SON05000B4 Base
A circulation thermostat for temperature control of external vessels is required for operation. Select according to required temperature range. E.g:
886710040 Heat thermostat Temperature range: 45..200 °C
886710040K Cold-heat thermostat ,Temperature range: 10 ... 100 °C
