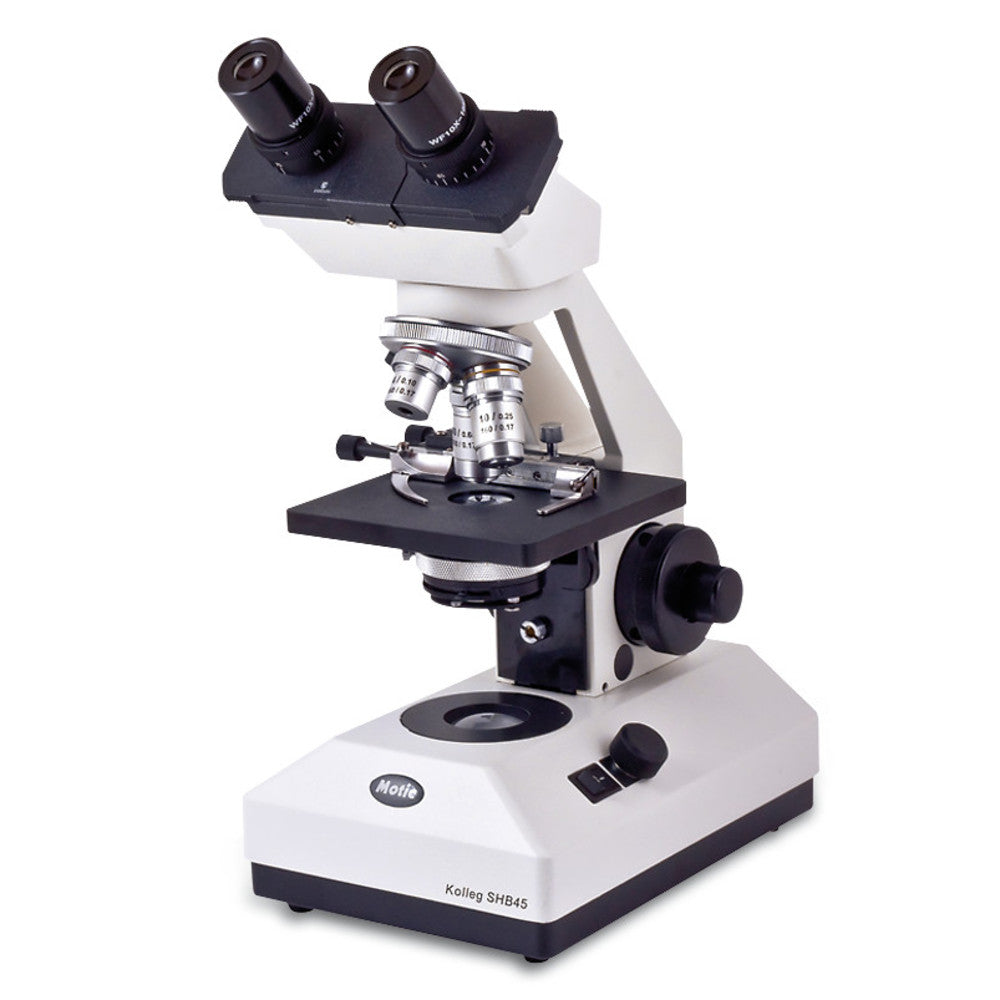

Laboratory and course microscope SHB 45, binocular, incl. protective dust cover, microscope slide, power cord, blue filter and dark-field membrane.
Rugged microscope for pupils and students. With adjustable halogen light and adaptation of light intensity.
Optional accessories (please order separately):
- Lenses for modulating the total magnification
Delivery incl. blue filter, dark field diaphragm and dust cover.
Technical Information
| Type | SHB 45 |
| Tube | binocular |
| Total magnification | 40x, 100x, 400x – can be expanded up to 1000x |
| Magnification type | turret |
| Ocular magnification | widefield 10x |
| Lenses | achromatic |
| Lens arrangement | 4-way, tilted forwards |
| Lens magnification | - 4x/N.A. 0.10 - 10x/N.A. 0.25 - 40x (spring)/N.A. 0.65 |
| Field of view | 18 mm |
| Dioptre compensation | ±5 dpt on both eyepieces |
| Angular observation | 45 ° |
| Head | Can be rotated 360° |
| Condenser | N.A. 1.25 focusable with iris diaphragm and filter holder |
| Light source | Halogen |
| Image focusing | coaxial coarse and fine focus |
| Optics | finite |
| Microscope stage | 120 x 120 mm with X-Y stage that can be fitted |
| Power supply | mains-powered |
| Mains connection | 230 V, 50 Hz |
