Beschreibung

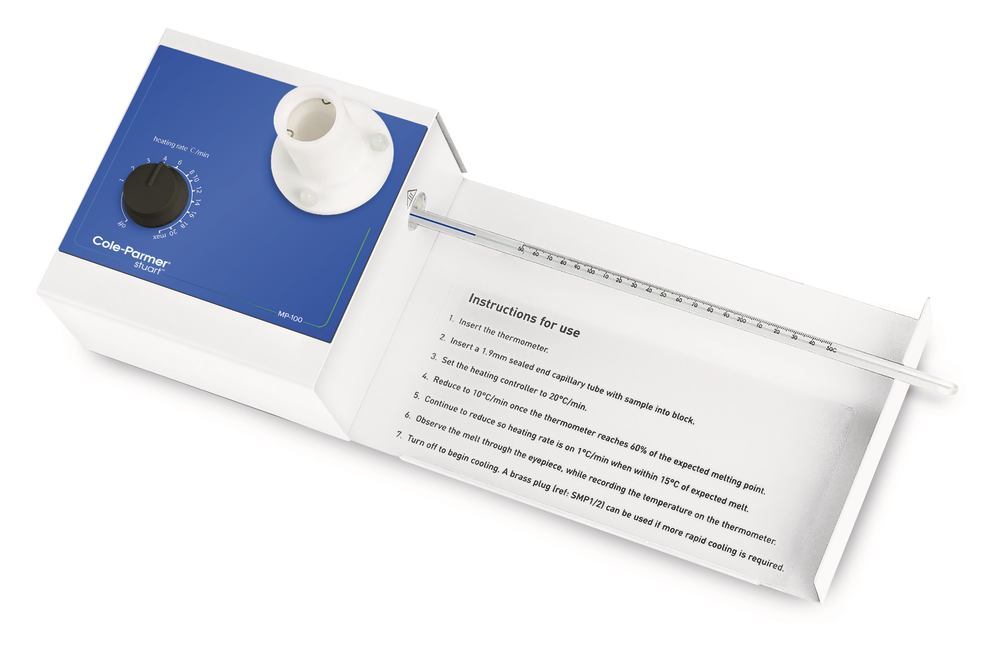

Melting point determ meas device MP-100, Analogue, observe and test 3 samples,, Incl. 100 melting point tubes, open at one side
General features:
- Easy application due to visual measuring technique
- Simultaneous observation and testing of three samples possible
- Place the sample in the capillary tube and insert it into one of the openings on the side of the heating block, and adjust the heating rate
- Heat up at 20 °C/min until close to the melting temperature (at approx. 60% of the expected melting point), then set a slower heating rate of 1 to 10 °C/min
- White LED for illuminated samples, visual inspection of the capillary is done via a magnifier and determination of the temperature via a thermometer filled with alcohol
Delivery incl. 100 melting point tubes (open at both sides).
Technical Information
| Type | MP-100 analogue |
| Measuring range | 50 to 250 °C |
| Accuracy | ±3 °C |
| Heat-up rate | 1 to 20 °C/min |
| Magnification | with 2-fold magnifier |
| Width | 370 mm |
| Depth | 140 mm |
| Height | 110 mm |
| Weight | 1,7 kg |
| Mains connection | 230 V, 50 Hz |
