Beschreibung

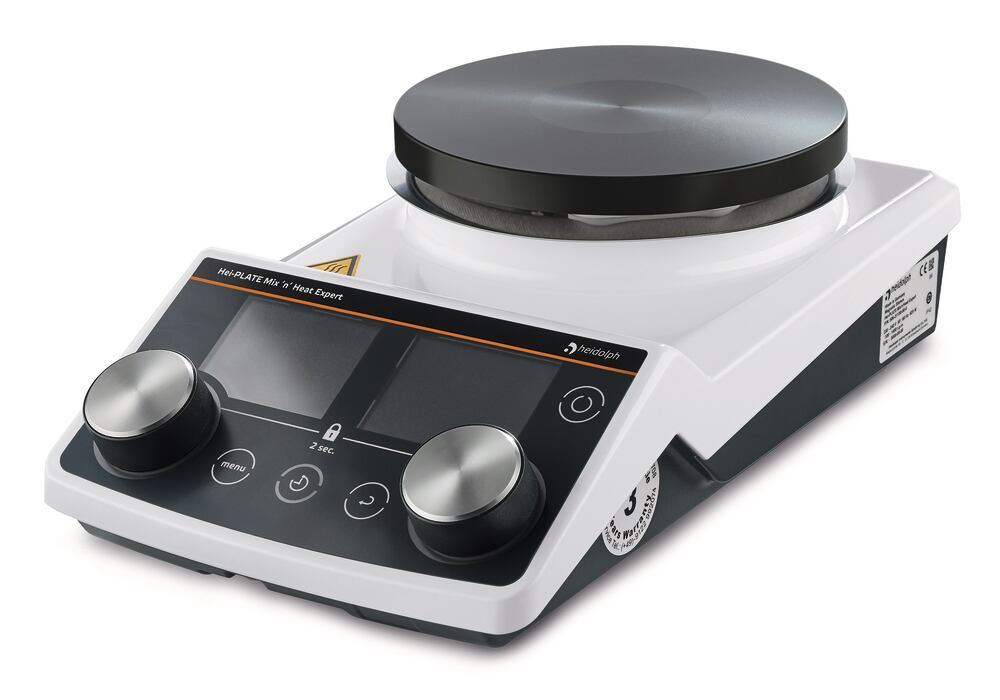

Mix'n'Heat Expert heat and magnet stirr, 100-1400/min, RT up to 350 °C, 20 l,, 800 W, 145 mm, two TFT displays for actual or set values and timers, Pt 1000 connection facility for medium temperature monitoring
- Two TFT displays for displaying actual and set values for speed and hot plate temperature as well as timer display (remaining time)
- Separate timers for the heating and stirring function
- Stirring speed adjustable in three stages (start-up behaviour)
- Direction of rotation of the magnetic motor can be adjusted by turning to the left or right
- Hot plate made of silumin with ceramic coating
- Flattened edges carry liquids away from the device
- Controlled heating output via FAST/PRECISE/PRECISE+ mode, for control of the target temperature without overshoot
- Direct connection facility for Pt 1000 medium temperature sensor (please order the desired temperature measuring sensor and the accessories for fastening the measuring probe separately)
- Integrated contact thermometer with full functionality
- Visual residual heat warning at temperatures >50 °C
- With USB B interface
Delivery without temperature sensor, sensor holder and silicone cover. If required, please order separately.
Technical Information
| Type | Mix'n'Heat Expert |
| Number of stirring points | 1 |
| Max. stirring capacity (H2O) | 20 l |
| Speed range | 100 to 1400 rpm |
| Speed accuracy | ±2 % |
| Operating temperature | room temperature to +350 °C |
| Setting accuracy | ±1 °C |
| Control accuracy without sensor | ±5 K |
| Control accuracy with sensor | ±1 K |
| Heating output | 800 W |
| Footprint | Ø 145 mm |
| W x D x H, total | 168 x 299 x 106 mm |
| Weight | 3 kg |
| Mains connection | 230 V, 50/60 Hz |
