Beschreibung

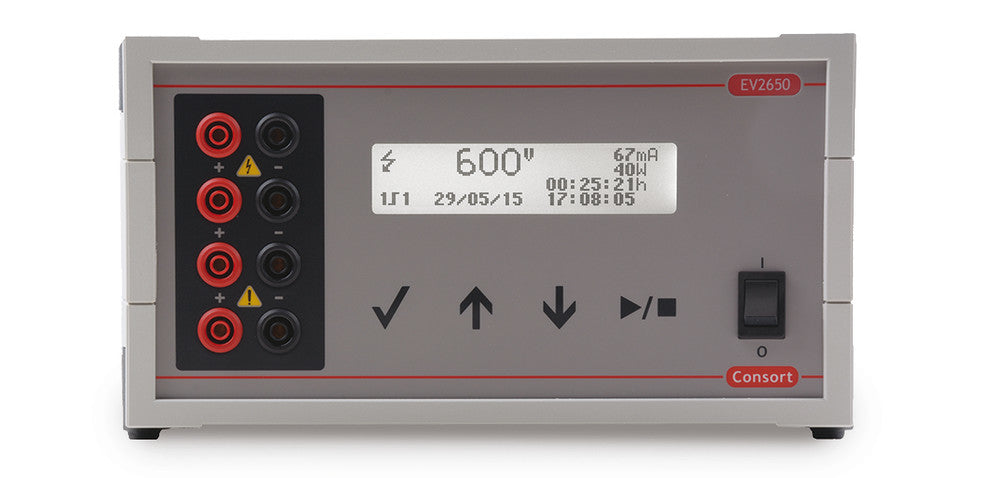

Power Supply EV2650, 600 V, 0-500 mA, 0-150 W, 4 mm sockets. Incl. power cable, w/o electrophoresis cables.
Low cost power supplies for all applications
General features:
- Small and compact devices
- On screen help in 4 languages for application and for solving errors
- Automatic cross-over to show which of the 3 parameters (V, mA, W) is kept constant during the run
- Automatic recovery after power failure
- Connection of up to 4 units possible (4 mm sockets)
- Password protection
- High safety standard
- 3 years warranty
Other properties of the devices (with the exception of EV0200):
- Storing of up to 9 methods possible
- Timer Mode
- Setting of a voltage gradient (Voltage Ramp Mode)
- Data logging of electrophoresis runs (of about 100 hours)
- Firmware updates via USB interface possible
- Remote control by PC possible
Suitable for
(formerly EV265)For horizontal and vertical gels and for electro-elution. Particularly suited for electrophoresis with multiple units.
Technical Information
| Type | EV2650 |
| Voltage range | 0-600 V |
| Current | 500 mA |
| Performance | 150 W |
| Volt-hours | 0-99,99 kVh |
| Timer display | 0-99,59 h |
| Display type | grafical |
| Resolution | 1 V1 mA1 W |
| Program | 9 × 9 parameter settings |
| Connection | Outlets: 4 Parallel socket pairs: 4 mm |
| Min. load resistance | 30 Ohm |
| Safety devices | Leak recognition |
| Ambient temperature | 0-40 °C |
| W x D x H | 24 x 20 x 13 cm |
| Weight | 6 kg |
| Mains connection | 210-250 V, 50/60 Hz, 200 W |
