Beschreibung

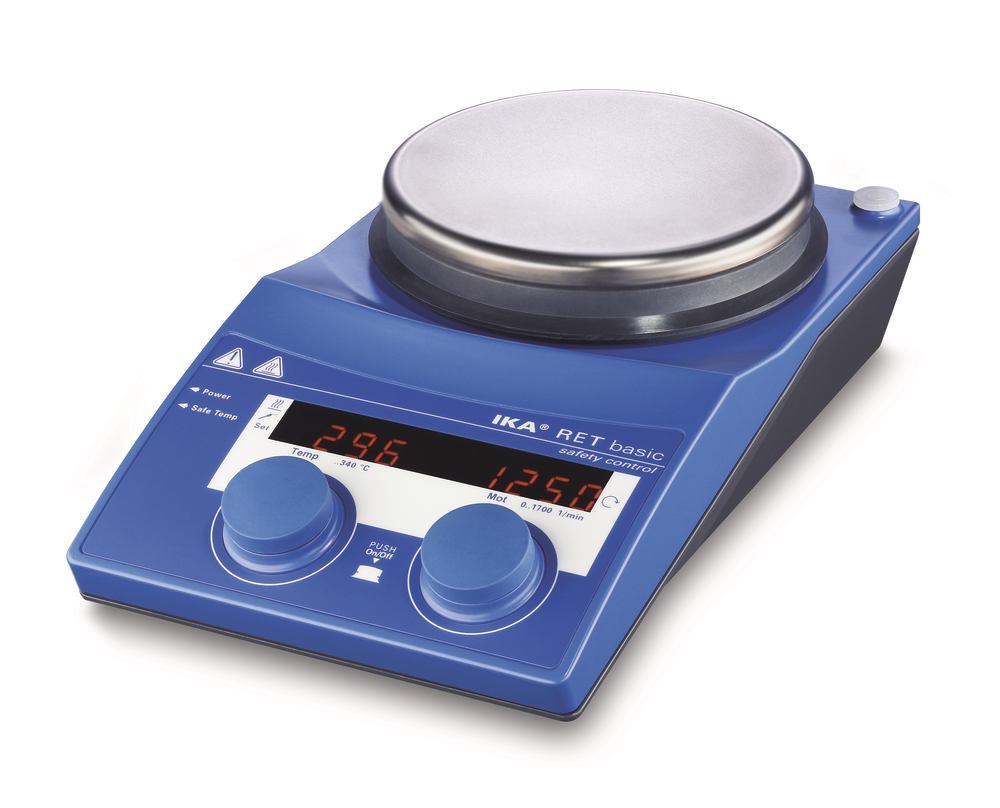

RET basic heating and magnetic stirrer, Safety control, 50-1700/min, 20 l, Incl. protective hood and PT 1000 temperature gauge
- Temperature and speed setting via digital display
- Electronic speed control, speed range 50-1700 rpm
- Safety magnetic stirrer with heater suitable for unsupervised operation
- Can be directly connected to PT 1000 medium temperature sensor
- Integrated contact thermometer with full functionality
- DIN socket 12878 for connection to an electronic contact thermometer, e.g. ETS-D5 for accurate temperature control (please order separately, see contact thermometer), control accuracy with ETS-D5: ±0.5 K
- The temperature control function automatically switches off if the externally connected temperature gauge is not immersed in the medium
- With adjustable safety circuit for the hot plate temperature, (50-380 °C)
Delivery incl. protective hood and PT 1000 temperature gauge (please order accessories for fastening the measuring probe separately if required).
Technical Information
| Type | RET basic safety control |
| Number of stirring points | 1 |
| Max. stirring capacity (H2O) | 20 l |
| Speed range | 50 to 1700 rpm |
| Speed display | digital |
| Motor power input | 16 W |
| Motor power output | 9 W |
| Hotplate material | stainless steel |
| Operating temperature | room temperature to +340 °C |
| Temperature display | digital |
| Setting accuracy | ±1 K |
| Control accuracy with sensor | PT 1000: ±1 KETS-D5: ±0,5 K |
| Heating output | 600 W |
| Footprint | Ø 135 mm |
| W x D x H, total | 160 x 270 x 95 mm |
| Weight | 2.5 kg |
| Mains connection | 200-230 V, 50/60 Hz |
