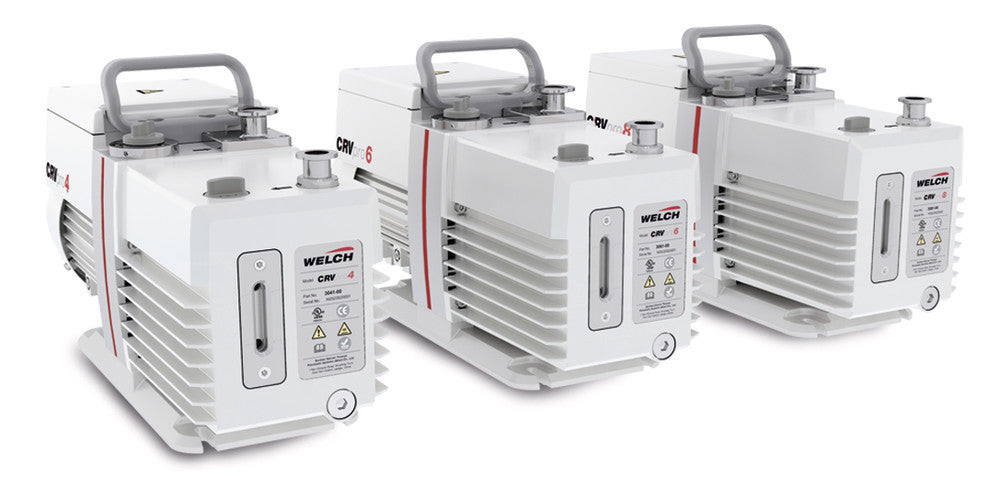

Rotary vane pump packages, CRVpro 6, pumping speed 5.1 l/min, incl. oil mist separator AKD 16, 2-way ball valve, adapter flange DN16KF-10/8 mm, vacuum hose (1.5 m), oil change set incl. 2 x 1 l oil, clamping and centring rings
Complete packages with two-stage rotary vane pumps.
- Low operating temperature due to enhanced cooling geometry
- Coating of the pump body and the oil container as protection against chemical vapours
- Low oil consumption and corrosion inhibition due to low heat development during operation
- Large oil reservoir reduces the concentration of chemicals, thereby increasing the oil change intervals
Application:
- Freeze dryer (CRVpro 4/6/8)
- Vacuum centrifuge (CRVpro 6)
- Vacuum ovens (CRVpro 8)
- Schlenk technology (CRVpro 4)
- Glove box (CRVpro 8)
Delivery incl. AKD 16 oil mist separator, 2-way ball valve, adapter (DN 16 small flange to DN 10/8 mm hose nozzle), vacuum hose (1.5 m), oil change set incl. 2 x 1 l oil, clamping and centring rings.
Technical Information
| Type | CRVpro 6 |
| Suction capacity (l/min) | 85.0 |
| Suction capacity (m³/h) | 5.1 |
| End vacuum (abs.) | 2 x 10-3 mbar |
| End vacuum abs. with gas ballast | 7 x 10-2 mbar |
| Media temperature | +10 - +40 °C |
| Connection | DN 16 KF small flange |
| Oil filling | 1,15 l |
| Motor power | 370 W |
| Ambient temperature | +10 - +40 °C |
| IP rating | 54 |
| Noise level | 50 db |
| W x D x H | 463 x 157 x 230 mm |
| Weight | 22 kg |
| Mains connection | 115-230 V, 50/60 Hz |
