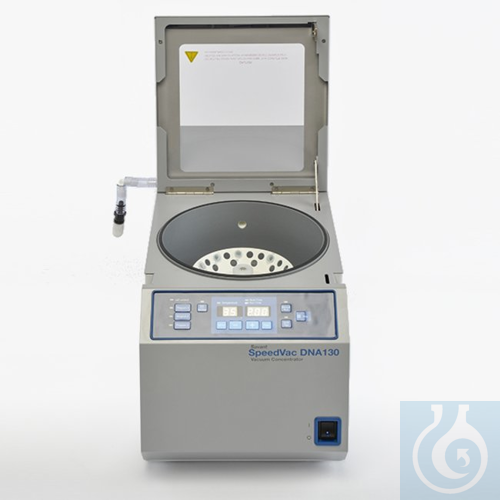

Savant™ SpeedVac™ DNA 130 Integrated Vacuum Concentrator System
Thermo Scientific™ Savant SpeedVac™ DNA130 is a compact, integrated vacuum concentrator designed for fast, efficient concentration of DNA and RNA applications. SpeedVac™ DNA130 vacuum concentrator will support sample preparations with ease and efficiency.
- Compact, easy to use design: smallest integrated benchtop unit saves lab bench space.
- Corrosion-resistant, PTFE coated chamber offers years of service
- Built-in, oil free vacuum pump offers maintenance-free operation
- Includes a rotor that holds 36 x 1.5-2.0 ml tubes (RD36)
Operating Features:
- Consistent performance: designed to ensure consistent drying times and reproducible results
- User-friendly interface
- Three user defined programs that can be modified and saved
- Temperature set point: ambient, 35°C to 65°C in 5°C increments
- Heat Time setting: from 1 m to 9h 59 m or continuous
- Run Time setting: from 1m to 9h 59m
- Audible alarm to alert user when run is complete
Sample Protection
- Dry at ambient temperatures or using low heat to avoid sample denaturing
- Oil-free diaphragm pump provides gentle transition from atmosphere to ultimate vacuum setting with no solvent bumping
Safety Features
- PTFE-coated chamber resists chemicals and cleans easily
- Latched lid and lid lock indicator ensures user safety during operation
- Lid stay mechanism to secure lid while it‘s open, allowing user to have both hands free for operation
- Unit and pump are virtually maintenance-free
- External post trap to neutralize ammonium hydroxide vapors
- Optional chemical traps and optional cartridges to trap radioactive chemicals to minimize concerns in handling hazardous fumes and chemicals.
Solvents and Solvent Combinations:
- Water
- PCR buffers (aqueous)
- Ethanol and water
- Ammonium Hydroxide (will require an ammonia post-trap ANT-100 and neutralizing solution accessory ANS121)
- Temperature Range (Metric): Ambient (17-32°C) to 65°C
- Chamber Material: PTFE coated Aluminum
- Includes: RD36 rotor (36x 1.5-2.0 ml tubes)
- Max. Vacuum: <10Torr (13mbar, 1.3kPa)
- Voltage: 230 Volts
- Shipping Weight (English): 105 lbs
- Shipping Weight (Metric): 48 kg
- Description: SpeedVac DNA130 Vacuum Concentrator System
- Certifications/Compliance: UL Listed to US and Canadian requirements. CE marked
- Electrical Requirements: 230V/50Hz
- Amperage: 6 Amps
- Plug Type: SCHUKO CEE 7-7
- Weight (English): 86 lbs
- Weight (Metric): 39 kg
- Capacity: Accommodates 36 x 1.5ml tubes, 72 x 0.5ml tubes and 2 x micro well plates.
- Dimensions (L x W x H): 11.5x25x12in/ 29x64x31cm
