Beschreibung

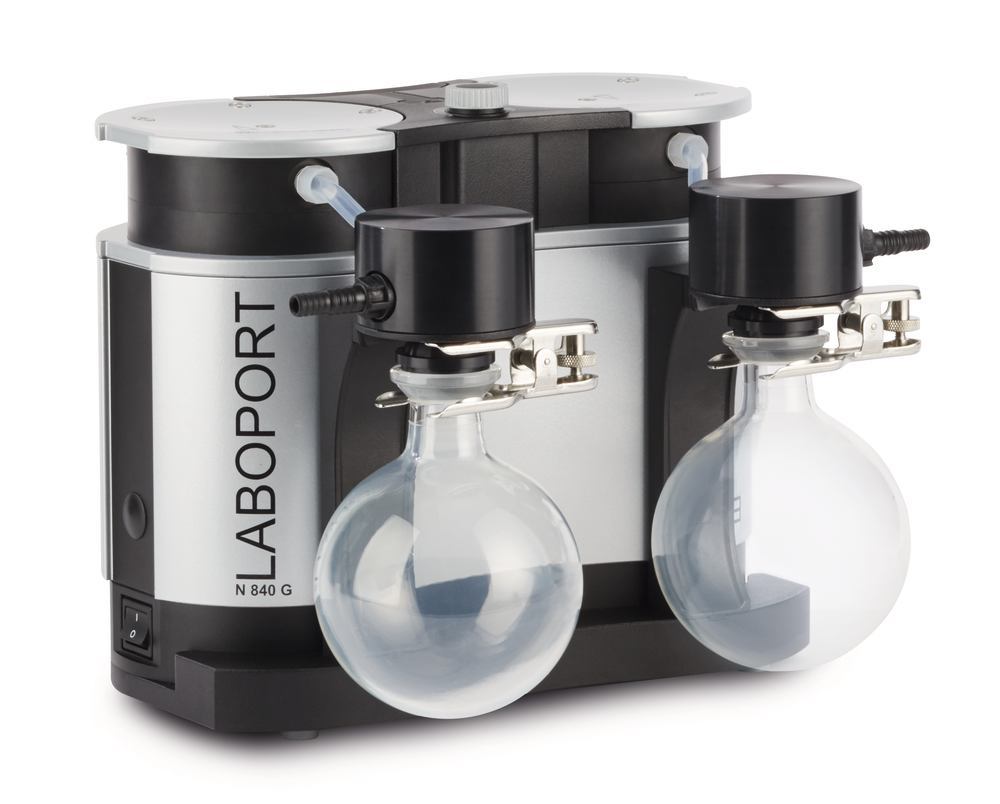

SR 840 G vacuum system, Delivery rate max. 34 l/min, incl. base plate, suction-side and pressure-side separator
Available in various versions and therefore tailor-made for the individual requirements in the laboratory. The core of the system is the LABOPORT® diaphragm vacuum pump (N 800 G-series): Compact, chemical-resistant and high-power. Even more environmentally friendly thanks to newly developed system components such as separator, high-performance condenser and/or innovative vacuum controller.
- Integrated speed control for precise vacuum
- Integrated gas ballast valve for high vapour and condensate resistance
- Inner media-contact area ATEX-compliant according to “II 3/-G Ex h IIB+H2 T3 Gc internal atmosphere only”; for applications involving working with highly flammable solvents in closed systems. Not approved for ATEX zones
Equipped with two coated glass separators (suction side and pressure side). For trapping and retaining particles and fluid droplets/condensate out of the flow. Prevents these from reaching the vacuum pump on the suction side and releases them into the ambient air on the pressure side.
| Type | SR 840 G |
| System | SR 840 G |
| Version | separator |
| Suction capacity (l/min) | 34.0 |
| End vacuum (abs.) | 6 mbar |
| End vacuum abs. with gas ballast | 17 mbar |
| Overpressure | 0,1 bar |
| Connection | for hose inner Ø 8-9.5 mm |
| Ambient temperature | +5 - +40 °C |
| Materials in contact with media | pump head: PTFE diaphragms: PTFE-coated valves: FFPM hose nozzles: PVDF/FPM |
| W x D x H | 299 x 274 x 250 mm |
| Weight | 13,1 kg |
| Mains connection | 100-240 V, 50/60 Hz |
| ROTH for Future | yes |
