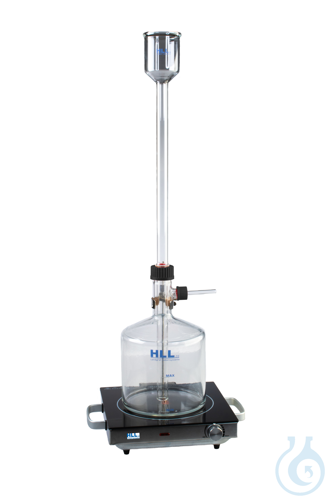

Vapour generator with adjustable electric heating
electric heater, attachment and stand holder
The steam generator is used to generate clean water vapour for laboratory purposes. The all-glass construction ensures that the water does not come into contact with other materials
Function and device description:
The device generates a steady stream of water vapour without boiling distortion. It consists of a 4 litre steam flask made of laboratory glass. In addition, the glass flask is provided with an external plastic coating, which protects the operator from injury in the event of glass breakage and also protects the flask from external influences. The top funnel for refilling demineralised water can be easily attached to the flask using a threaded screw connection. The vapour is extracted via the screw connection on the side.
The device is fully equipped with a separate heater with built-in power regulator, which has internal overheating protection in the event of dry running. The integrated fastening secures the glass bulb against slipping.
Power 2000 W /230V /50 Hz
Vaporiser flask 4000 ml,(filling volume 2000 ml)
Connections: Thread GL 45/ GL 25
Material: Clean Save laboratory glassware DIN ISO 3585
Properties/ safety features:
More even vapour flow
Product contact: Glass and Teflon
Plastic-coated piston for reduced risk of glass breakage
Unpressurised operation.
Heating plate with overheating protection
Screw connections
Marked filling volume at 2000 ml
Exemplary use:
Generation of a uniform, clean water vapour flow
Separation of water vapour soluble substances
Nitrogen determination according to Kjeldahl
Parnas-Wagner nitrogen analyser SON02143 ,WER00362
Testing of lubricants DIN 5158
