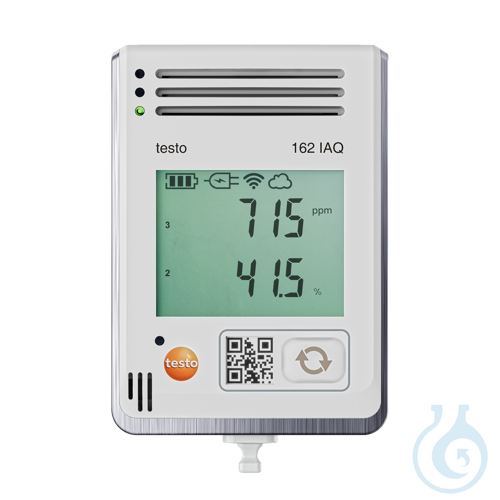

The testo 162 IAQ online data logger is an easy-to-use climate logger with display for monitoring temperature, humidity, CO2 and atmospheric pressure with an integrated sensor.
Scope of delivery: datalogger, batteries, wallholder, test protocol, USB cable, power supply, packaging, OnePager
Technical data:
Operating temperature: 0 ... +50 °C
Storage temperature: -20 ... +50 °C
Protection class: IP20
Measuring cycle & communication cycle: 1min ... 24h (with continuous power supply; 5min ... 24h (with battery operation)
Memory: 32,000 (sum of all channels)
Power supply: 4x alkaline manganese battery AA (0515 0414)
(continuous power supply possible with scope of delivery)
Battery life
(with measuring & communication cycle 15min) < 1 year
Temperature measurement
Sensor type NTC
Measuring range: 0 ... +50°C
Accuracy: ±0.5 °C
Resolution: 0.1 °C
Humidity measurement
Sensor type: NTC
Measuring range: 0 ... 100 %rh (non-condensing)
Accuracy:
<= ± 5% RH (0 .. <10 %RH)
<= ± 3% RH (10 ... <35 %RH)
<= ± 2% RH (35 .. <65 %RH)
<= ± 3% RH (65 .. <90 %RH)
<= ± 5% RH (90 .. 100 %RH)
<= ± 1% RH hysteresis
<= ± 1% RH / drift per year
<= ± 0.06%RH/K(0 to 60 °C)
Resolution: 0.1 %RH
CO2 measurement:
Measuring range: 0...5000 ppm
Accuracy: ±(50 ppm + 3 % v. Mw.) at +25 °C // ±(100 ppm + 3 % v. Mw.) at +25 °C (with battery operation)
Resolution: 1 ppm
Atmospheric pressure:
Measuring range: 600 ... 1100 mbar
Accuracy: ±3 mbar at +22 °C
Resolution: 1 mbar
Radio
Standard: WLAN 802.11 b/g/n
Security: WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA
Personal, WPA2 (AES), WPA (TKIP), WEP
- Limit value violation alarms by push notification, e-mail or (optionally) SMS
- Automated monitoring of temperature, humidity, CO2 and atmospheric pressure with integrated sensor
- Connection to the testo Smart App: Simple commissioning, push alarms and dashboard
- Automatic measurement value documentation in testo Saveris (Cloud)
- Data transfer by wireless LAN
