Beschreibung

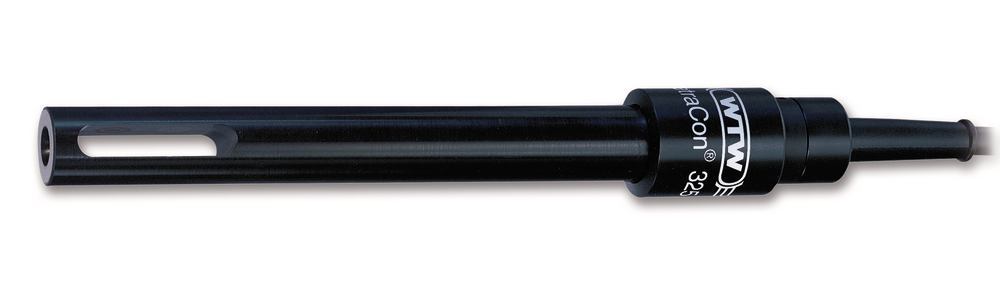

TetraCon® 325 conductivity sensor, With 1.5 m fixed cable (8-pin)
Four electrode conductivity sensors with integrated temperature sensor, for standard measurements in aqueous solutions. Low insertion depth and high measuring range. No measuring errors due to cable interference or electrode contamination.
Delivery incl. fixed cable (length 1.5 m).
Technical Information
| Type | TetraCon® 325 |
| Parameters | conductivity temperature |
| Conductivity measuring range | 1 µS/cm to 2000 mS/cm |
| Operating temperature | -5 to +80 °C |
| Cell type | four graphite pins |
| Cell constant | 0,475 cm-1 |
| Shaft length | 120 mm |
| Ø Shaft | 15.3 mm |
| Shaft material | epoxid |
| Temperature sensor | NTC 30 kΩ |
| IP rating | 68 |
| Connection | 8-pin connector |
