Consisting of:

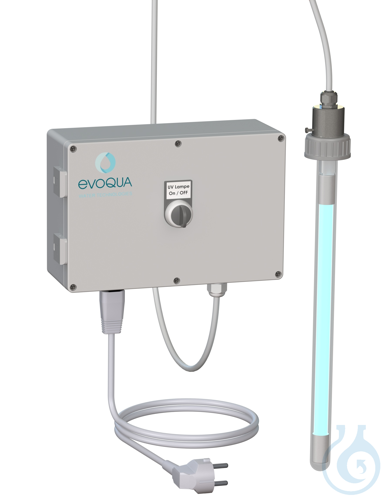

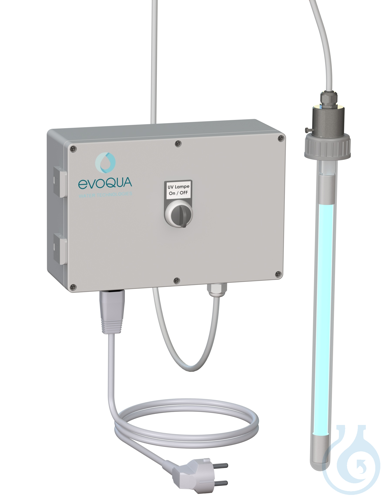

1 UV submersible lamp, fitted into a special quartz protection pipe with installation flange
1 preconnecting device within a poly carbonate housing with ON-OFF switch
Technical data:
Tank capacity: up to 1 m³
Water temperature: +5 - +30°C
Number of radiators: 1
Lifetime lamp: 8.000 h
Power supply: 85 - 264 V, 50/60 Hz
Power input max.: 16 W
UV-C power: 3,4 W
Wave length: 254 nm
Protection class: IP54
Dimensions:
Length (submers. lamp): 446 mm
Insertion legth: 378mm
Control cable: 3.2 m
Connection cable: 2.5 m
UV-replacement lamp: W2T525543
