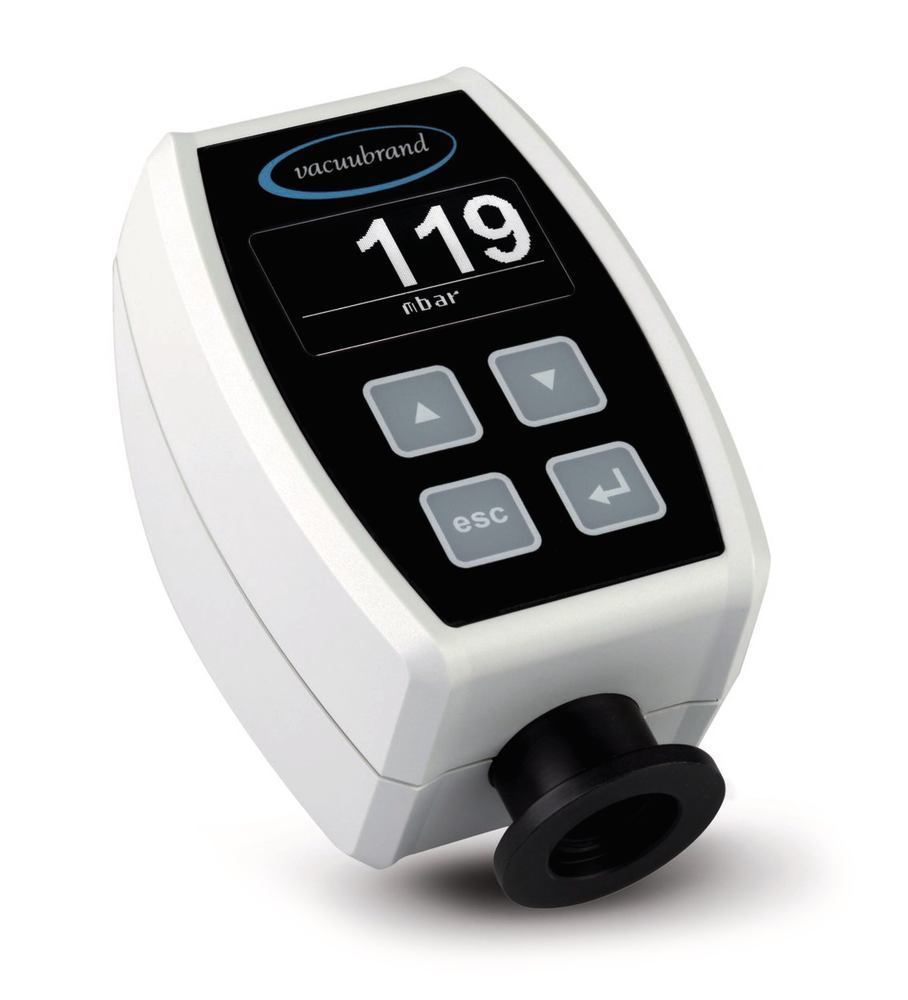

Vacuum meter, VACUU VIEW Standard for rough vacuums, Incl. DN 6/10 mm hose nozzle and plug-in power supply.
For monitoring vacuum processes with particularly high precision.
- Lit pressure display makes it easy to read the measured values
- Display with menu navigation, simple adjustment of display options, e.g. pressure unit
- Compact design with integrated sensors; is practical to position for lab and process set-ups
- Sensor chemical-resistant for increased service life, even for aggressive applications
- Stable plastic housing with good chemical resistance
- Switchable pressure display (mbar, torr, hPa)
With chemical-resistant ceramic membrane sensor for measurements in the coarse vacuum range. Detection of the applied absolute pressure, regardless of the gas type, according to the capacitive measuring principle.
Delivery incl. DN 6/10 mm hose nozzle and plug-in power supply.
Technical Information
| Type | VACUU VIEW Standard |
| Measuring range | 1100-1 mbar |
| Resolution | 1 mbar (1100-100 mbar) 0.1 mbar (100-1 mbar) |
| Measuring principle | capacitive |
| Accuracy | < ±1 mbar/±1 digit |
| Connection | KF DN 16 small flange DN 6/10 mm stepped hose nozzle |
| Ambient temperature | +10 - +40 °C |
| L x W x H | 50 x 62 x 103 mm |
| Weight | 190 g |
| Mains connection | 100-230 V, 50/60 Hz |
