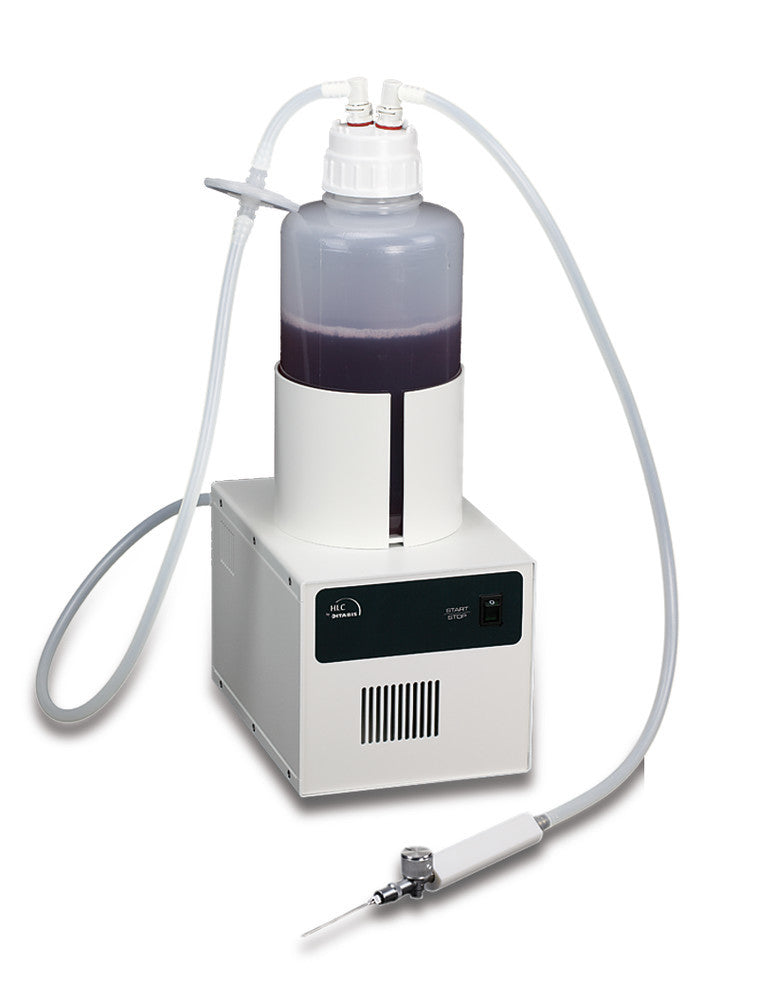

Vacuum-safety-suction system AA 02, 17 l/min, 100 mbar, incl. vacuum pump in aluminium housing, collecting bottle PP 2 liters, handle with trumpet valve, quick release couplings, silicone rubber hose, safety filter, aeration insert
For safe vacuum extraction of liquid residues.
Basic equipment:
- Vacuum pump
- Collecting bottle made of PP, vacuum-resistant, autoclavable
- Screw cap with two quick-release couplings for tight sealing of the collecting bottle after the hoses are disconnected
- Ventilation insert for pressure compensation during autoclaving of collecting bottle
- Safety filter to protect the vacuum pump and surrounding area
- Silicone hose (3 m) for placing the extraction system away from the workbench
Note: when the quick couplings are fitted, unscrew the cap before autoclaving and place it on the bottle.
- Lacquered aluminium housing
- Compact design, safety bottle holder mounted on high-performance vacuum pump
- Suitable for up to four sampling points (optional)
- Handle with AH 01 trumpet valve for attaching various suction instruments and a mechanical flow rate control system; incl. adapter for Pasteur pipettes, adapter for 1 ml pipette tips and angle adapter
- Vacuum pump with automatic cut-out. The pump cuts out automatically when extraction is completed using the handle and the final vacuum is reached
Technical Information
| Type | AA 02 |
| Bottle volume | 2000 ml |
| Suction capacity (l/min) | 17.0 |
| End vacuum (abs.) | 100 mbar |
| Ambient temperature | +4 - +40 °C |
| W x D x H | 170 x 220 x 155 mm |
| Weight | 5,5 kg |
| Mains connection | 230 V, 50 Hz |
