Beschreibung

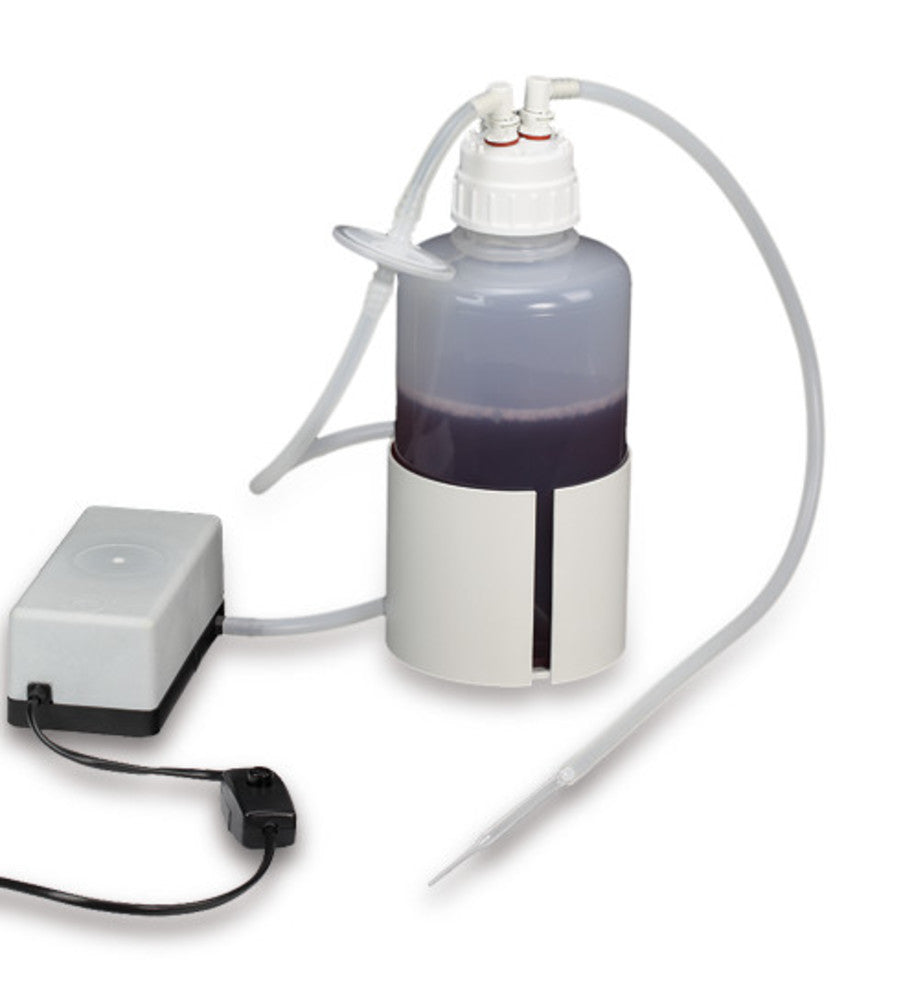

Vacuum-safety-suction system AZ 04, 8 l/min, 700 mbar, incl. vacuum pump, collecting bottle PP 4 liters, quick release couplings, silicone rubber hose, safety filter, aeration insert
For safe vacuum extraction of liquid residues.
Basic equipment:
- Vacuum pump
- Collecting bottle made of PP, vacuum-resistant, autoclavable
- Screw cap with two quick-release couplings for tight sealing of the collecting bottle after the hoses are disconnected
- Ventilation insert for pressure compensation during autoclaving of collecting bottle
- Safety filter to protect the vacuum pump and surrounding area
- Silicone hose (3 m) for placing the extraction system away from the workbench
Note: when the quick couplings are fitted, unscrew the cap before autoclaving and place it on the bottle.
- Simple system for extraction of small volumes
- Attachment of Pasteur pipettes or aspiration pipettes directly to the hose
- Please order metal stand for the collecting bottle separately
Technical Information
| Type | AZ 04 |
| Bottle volume | 4000 ml |
| Suction capacity (l/min) | 8.0 |
| End vacuum (abs.) | 700 mbar |
| Ambient temperature | +4 - +40 °C |
| W x D x H | 75 x 170 x 60 mm |
| Weight | 1,5 kg |
| Mains connection | 230 V, 50 Hz |
