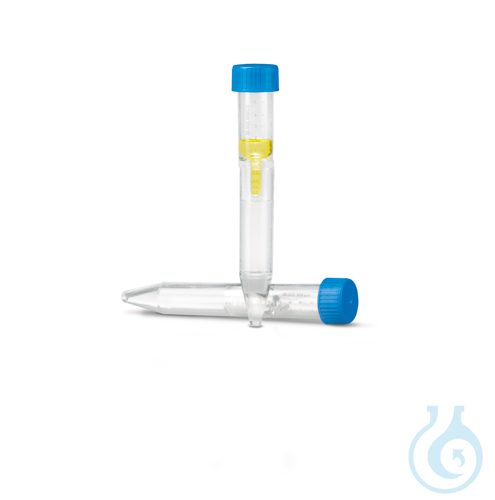

Vivaspin® 6 centrifugal concentrators have been developed to offer increased volume flexibility and performance. Vivaspin® 6 can process an impressive 6 ml in either swing bucket or fixed angle rotors accepting standard 15ml conical bottom test tubes. Vivaspin® 6 features twin vertical membranes for unparalleled filtration speed and > 100-fold concentration. Remaining volume is easy to read off the printed scale on the side of the concentrator and the modified dead stop pocket further simplifies direct pipette recovery of the final concentrate. High flux PES twin membranes High retentate recovery > 90 % Vertical membrane design for ultra fast concentration Universal rotor compatibility Safe sample concentration due to dead-stop volume Convenient concentrate recovery by pipetting Volume graduation for easy reading/monitoring > 100-fold concentration with twin vertical membranes Vivaspin® 6 Polyethersulfone, 1,000 kDa Performance Characteristics
| | Time to concentrate up to 30x [min.] at 20°C and solute recovery % |
| Rotor | Swing bucket | 25° Fixed angle |
| Start volume | 6 ml | 6 ml |
| | Min. | Rec. | Min. | Rec. |
| Cytochrome c 0.25 mg/ml (12,400 MW) |
| 3,000 MWCO PES | - | - | 90 | 97 % |
| BSA 1.0 mg/ml (66,000 MW) |
| 5,000 MWCO PES | 20 | 98 % | 12 | 98 % |
| 10,000 MWCO PES | 13 | 98 % | 10 | 98 % |
| 30,000 MWCO PES | 12 | 98 % | 9 | 97 % |
| IgG 0.25 mg/ml (160,000 MW) |
| 30,000 MWCO PES | 18 | 96 % | 15 | 95 % |
| 50,000 MWCO PES | 17 | 96 % | 14 | 95 % |
| 100,000 MWCO PES | 15 | 91 % | 12 | 91 % |
| Latex beads 0.004% in DMEM 10% FCS (0.055 µm) |
| 300,000 MWCO PES | - | - | 25 | 99 % |
| Latex beads 0.004% in DMEM 10% FCS (0.24 µm) |
| 1,000,000 MWCO PES | - | - | 4 | 99 % |
| Yeast 1.0 mg/ml (S. Cerevisiae) |
| 0.2 µm PES | 4 | 97 % | 3 | 97 % |
