DATA TRANSFER MADE EASY

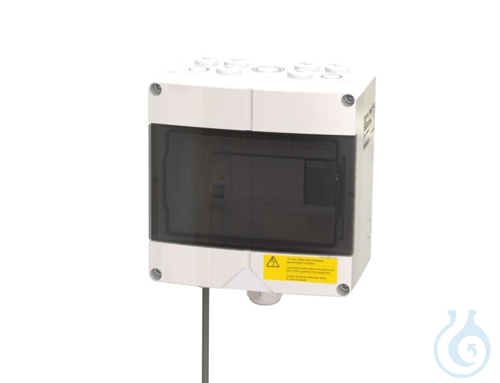

The Communication Interface Module (Gateway) is the interface between your Evoqua water treatment system and your Building
Management System (BMS), or a PC/laptop through an Ethernet network cable.
The gateway automatically detects which Evoqua water treatment system is connected, and establishes a permanent connection.
The system continuously sends defined operating parameters via modbus TCP protocol.
Suitable for LaboStar, UltraClear and Protegra systems.
- includes 2m 5-pin DIN connection cable
- rugged housing for wall mounting
- data transfer between our system
and Modbus RTU/TCP
- 100...240V AC N/PE 50/60Hz
- Connections RJ45/RS232/RS485
- Weight: ca. 1,5 Kg
- Dimenstions: 200 x 200 x 122mm (W/H/D)
